Removal and Installation

FRONT COMBINATION LAMP


Removal and Installation


REMOVAL

CAUTION:
Disconnect the battery negative terminal or remove the fuse.
1. Remove the front bumper fascia. Exploded View.
2. Remove the mounting bolts.

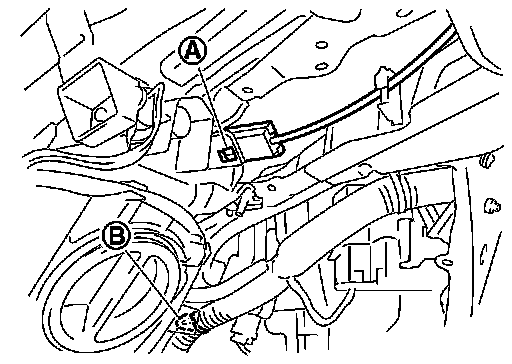

3. Remove the holding clip (A)* and the harness clip (B).





*: Left side only
4. Pull out the headlamp assembly forward the vehicle.
5. Disconnect the connector before removing the headlamp housing assembly.

INSTALLATION
Install in the reverse order of removal.

NOTE:
- After installation, perform aiming adjustment. Description.
- After installation, check that headlamp lighting. Inspection After Installation.
