Home >> Infiniti >> 2010 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Lighting and Horns >> Description and Operation >> Parking, License Plate and Tail Lamp System >> Component Description

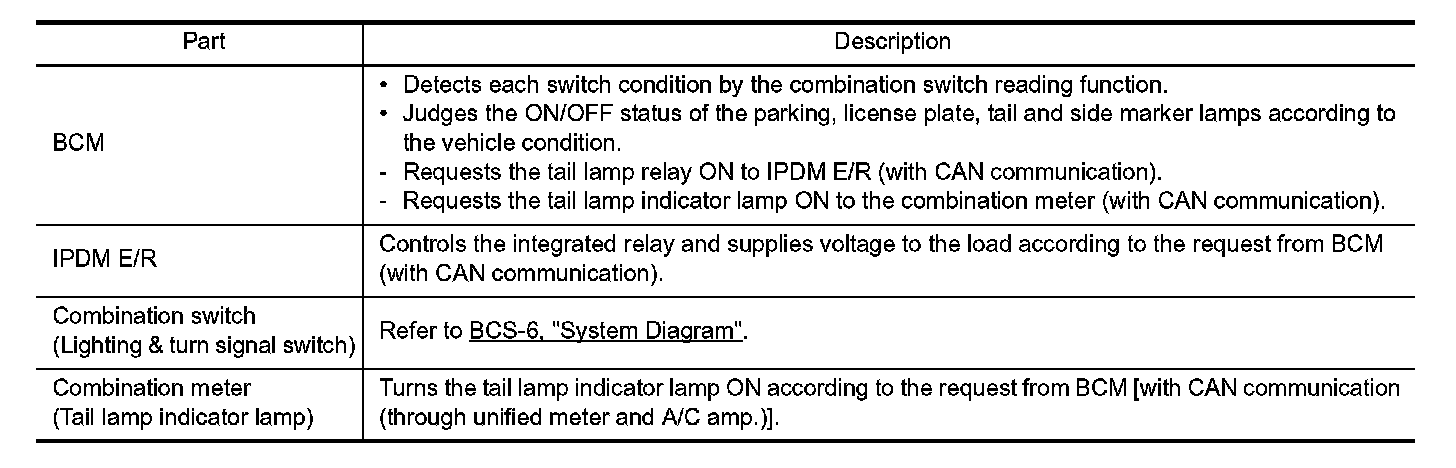

Component Description





COMPONENT PARTS


PARKING, LICENSE PLATE AND TAIL LAMP SYSTEM : Component Description
