Unified Meter and A/C Amp





UNIFIED METER AND A/C AMP.


Fail-safe


FAIL SAFE
The unified meter and A/C amp. activates the fail-safe control if CAN communication with each unit is malfunctioning.

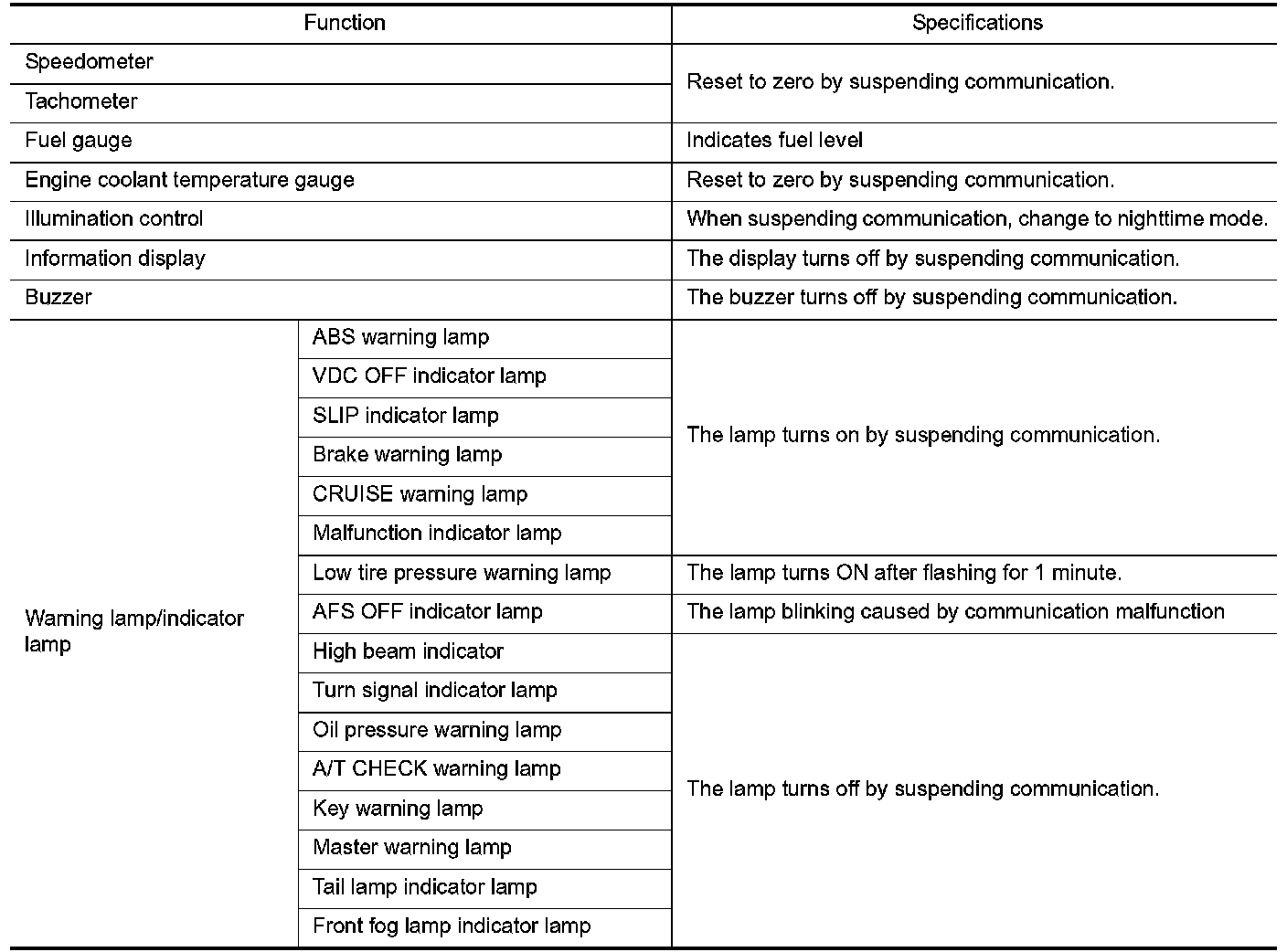

Fail-Safe Chart:
