Diagnosis Procedure

WASHER LEVEL SWITCH SIGNAL CIRCUIT


Description

Transmits the washer level switch signal to the combination meter.




WASHER LEVEL SWITCH SIGNAL CIRCUIT


Diagnosis Procedure

1.CHECK WASHER LEVEL SWITCH SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect combination meter connector and washer level switch connector.

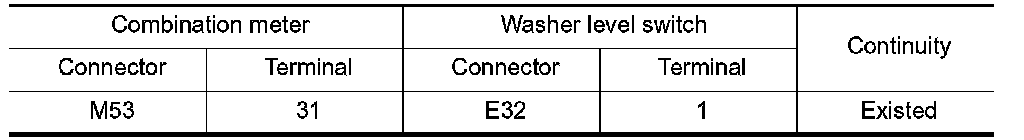

3. Check continuity between combination meter harness connector terminal and washer level switch harness connector terminal.

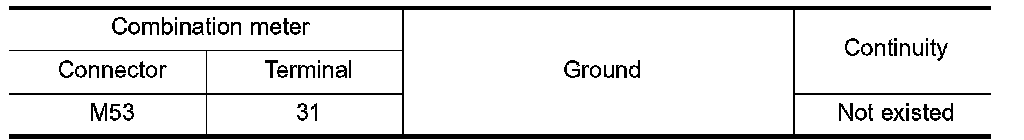

4. Check continuity between combination meter harness connector terminal and ground.





Is the inspection result normal?
YES - INSPECTION END
NO - Repair harness or connector.
