Component Inspection

OIL PRESSURE SWITCH SIGNAL CIRCUIT


Component Inspection

1.CHECK OIL PRESSURE SWITCH

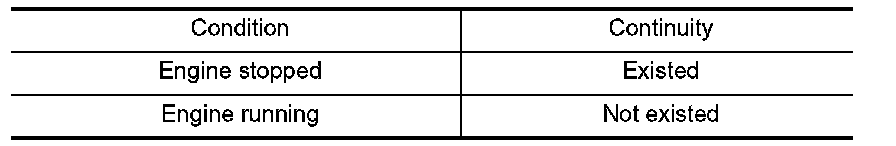

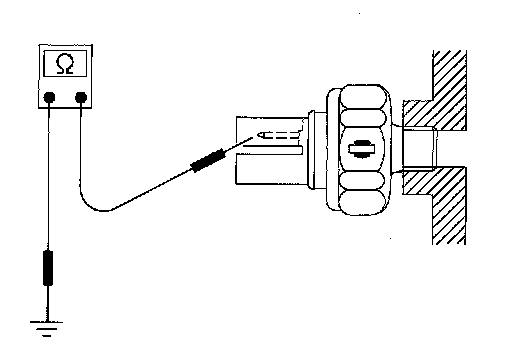

Check continuity between oil pressure switch and ground.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace the oil pressure switch.
