Component Function Check

FUEL LEVEL SENSOR SIGNAL CIRCUIT


Component Function Check

1.CHECK UNIFIED METER AND A/C AMP. OUTPUT SIGNAL
1. Connect the CONSULT-III.

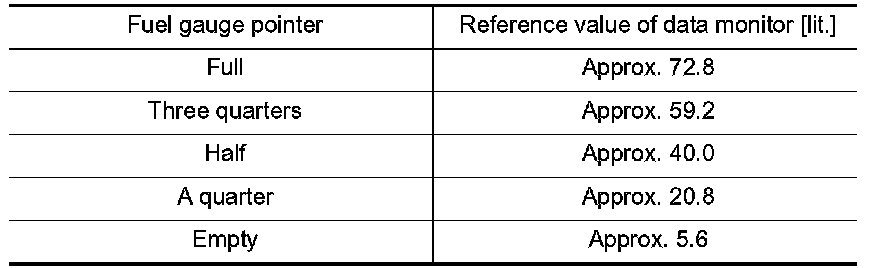

2. Select the "Data Monitor" for the "METER/M&A" and compare the "FUEL METER" monitor value with the fuel gauge reading on the combination meter.





Does monitor value match fuel gauge reading?
YES - INSPECTION END
NO - Replace combination meter.
