Removal and Installation

METER CONTROL SWITCH


Removal and Installation


REMOVAL
1. Remove combination meter.

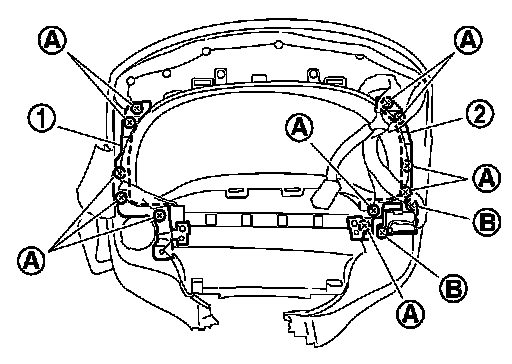

2. Remove screws (A) and remove bracket RH (1), LH (2).
3. Remove screws (B) and remove meter control switch.

INSTALLATION
Install in the reverse order of removal.
