Removal and Installation

INTELLIGENT KEY WARNING BUZZER


Removal and Installation


REMOVAL
1. Remove the hood seal assembly (side). Removal and Installation.

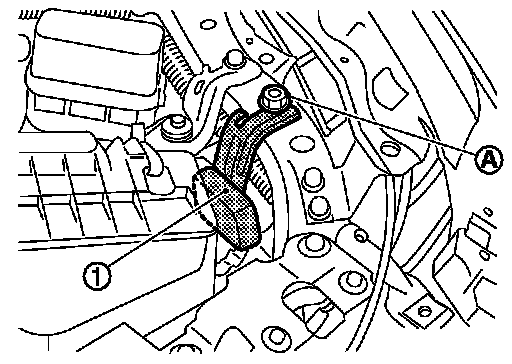

2. Remove the Intelligent Key warning buzzer mounting bolt (A), and then remove the Intelligent Key warning buzzer (1).

INSTALLATION
Install in the reverse order of removal.
