Buzzer





DIAGNOSIS SYSTEM (BCM)


BUZZER : CONSULT-III Function (BCM - BUZZER)

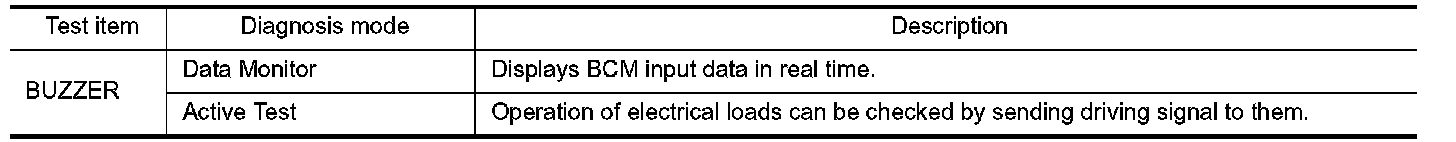

CONSULT-III APPLICATION ITEMS

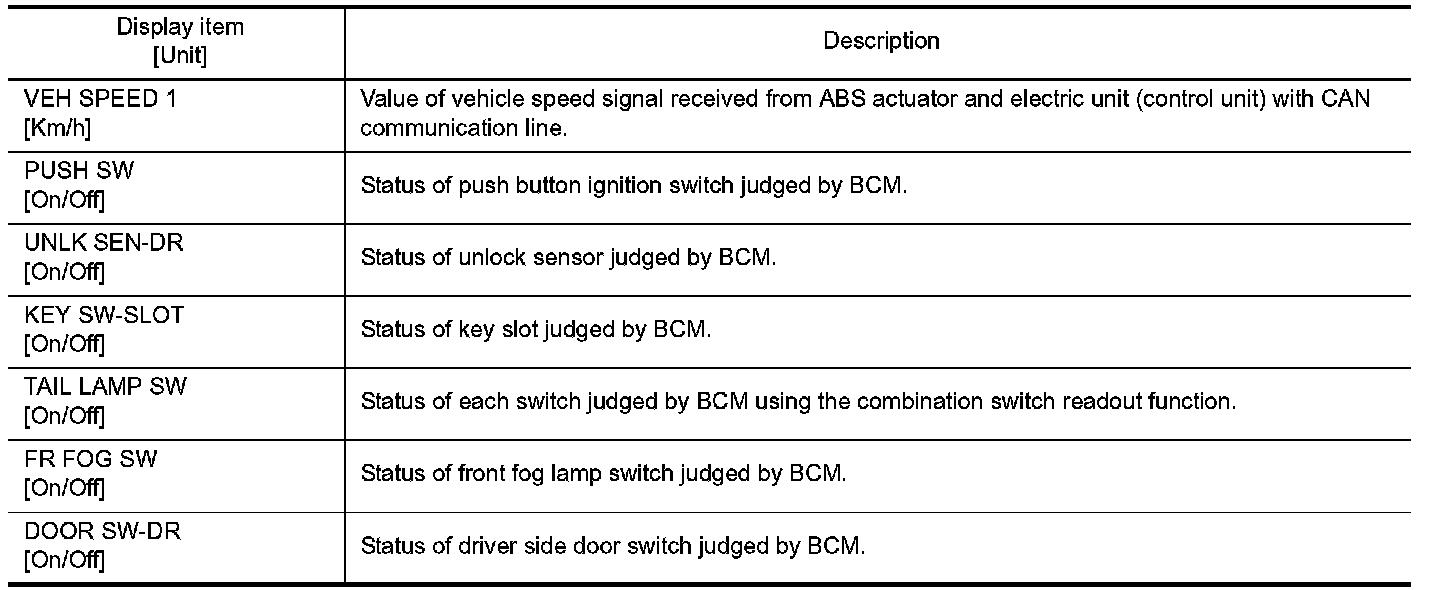

DATA MONITOR

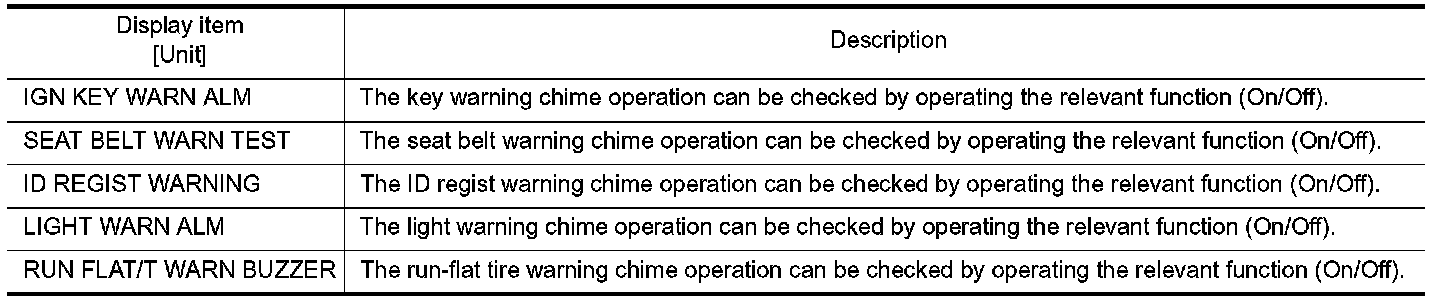

ACTIVE TEST
