FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Infiniti
>>
2010
>>
G37 Convertible V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Table
>>
Refrigeration System Symptoms
Refrigeration System Symptoms
REFRIGERATION SYSTEM SYMPTOMS
Symptom Table

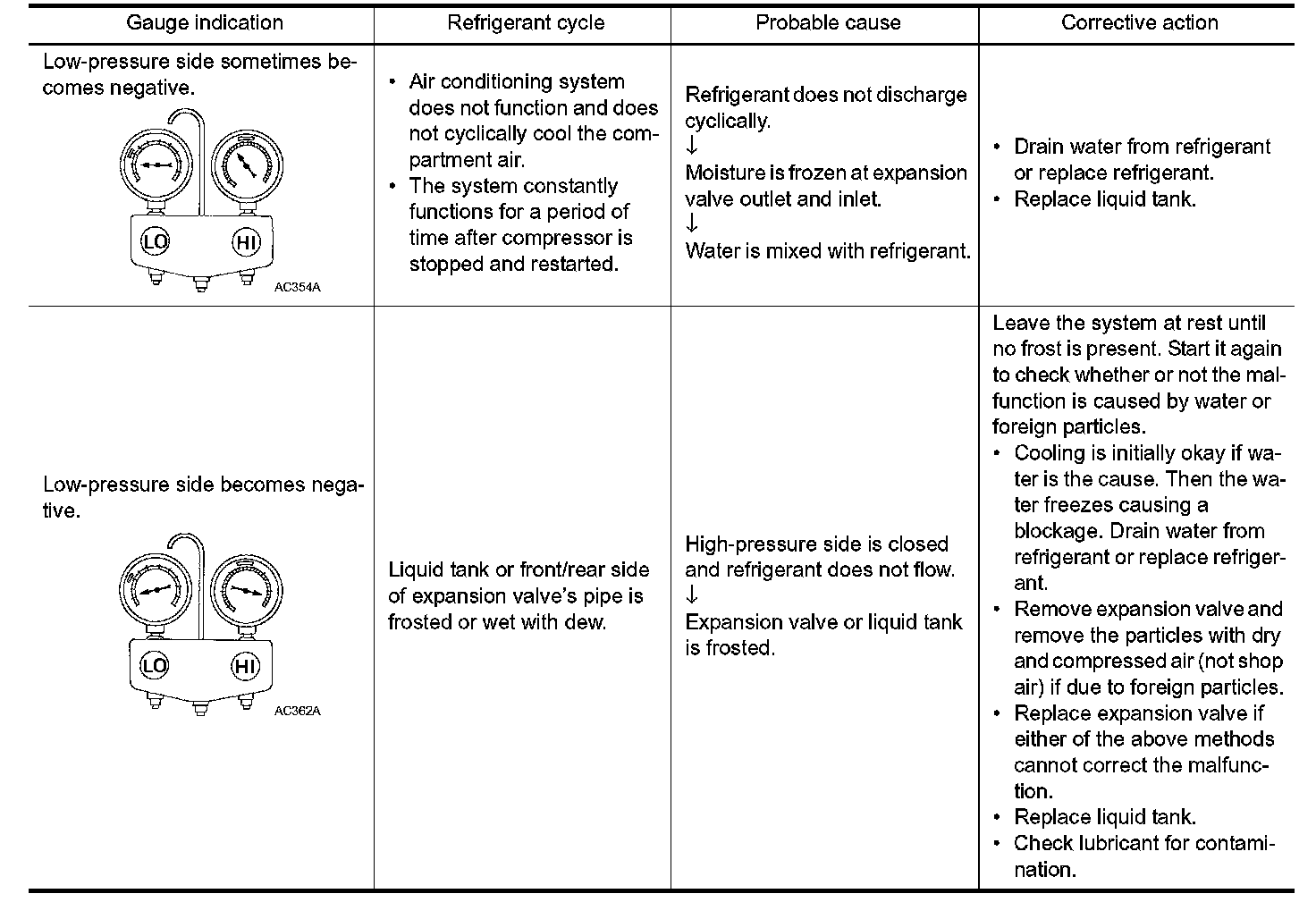

Symptom Table (Part 1):

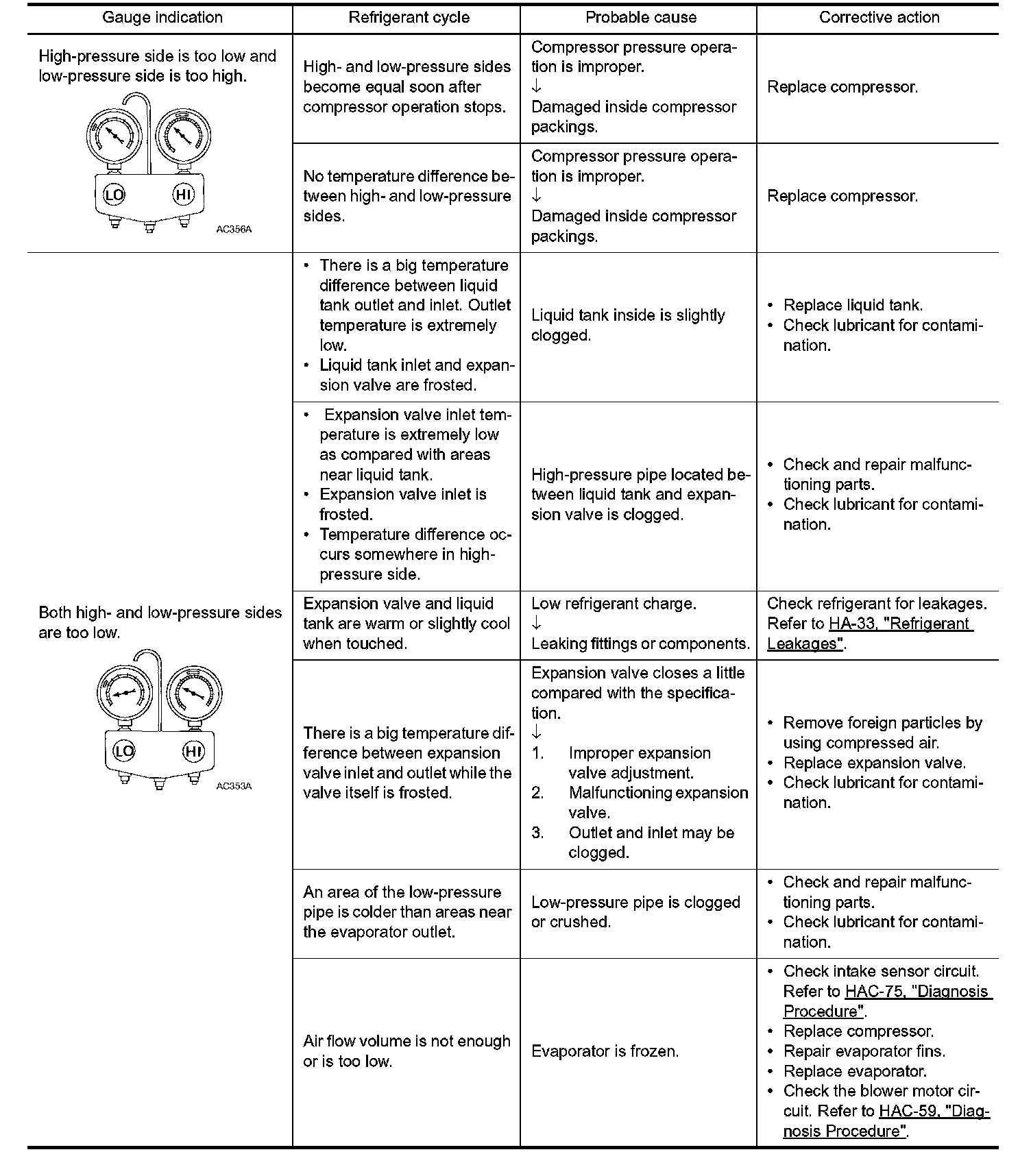

Symptom Table (Part 2):

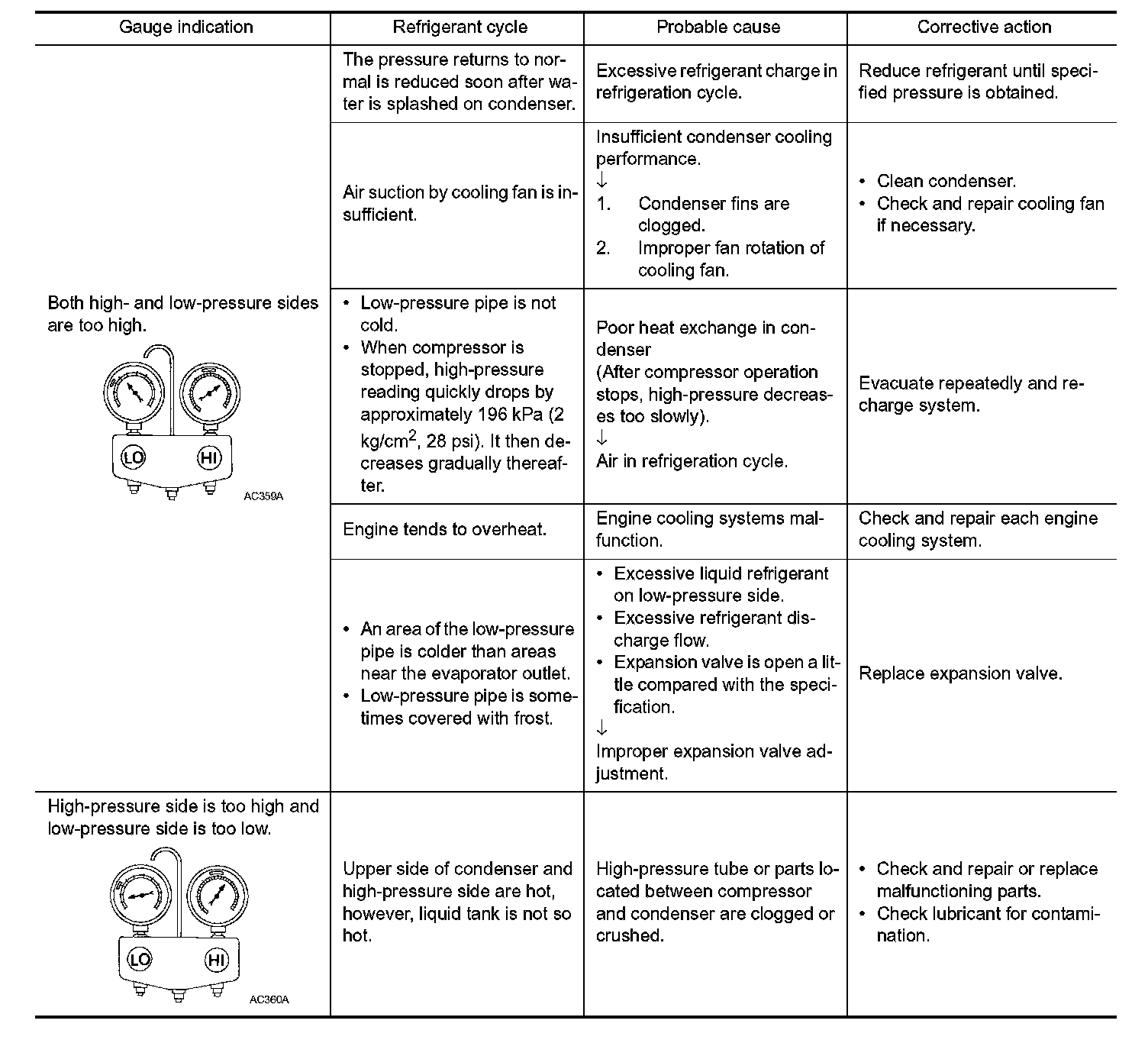

Symptom Table (Part 3):
