Home >> Infiniti >> 2010 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Table >> Air Conditioner Control

Air Conditioner Control





AIR CONDITIONER CONTROL

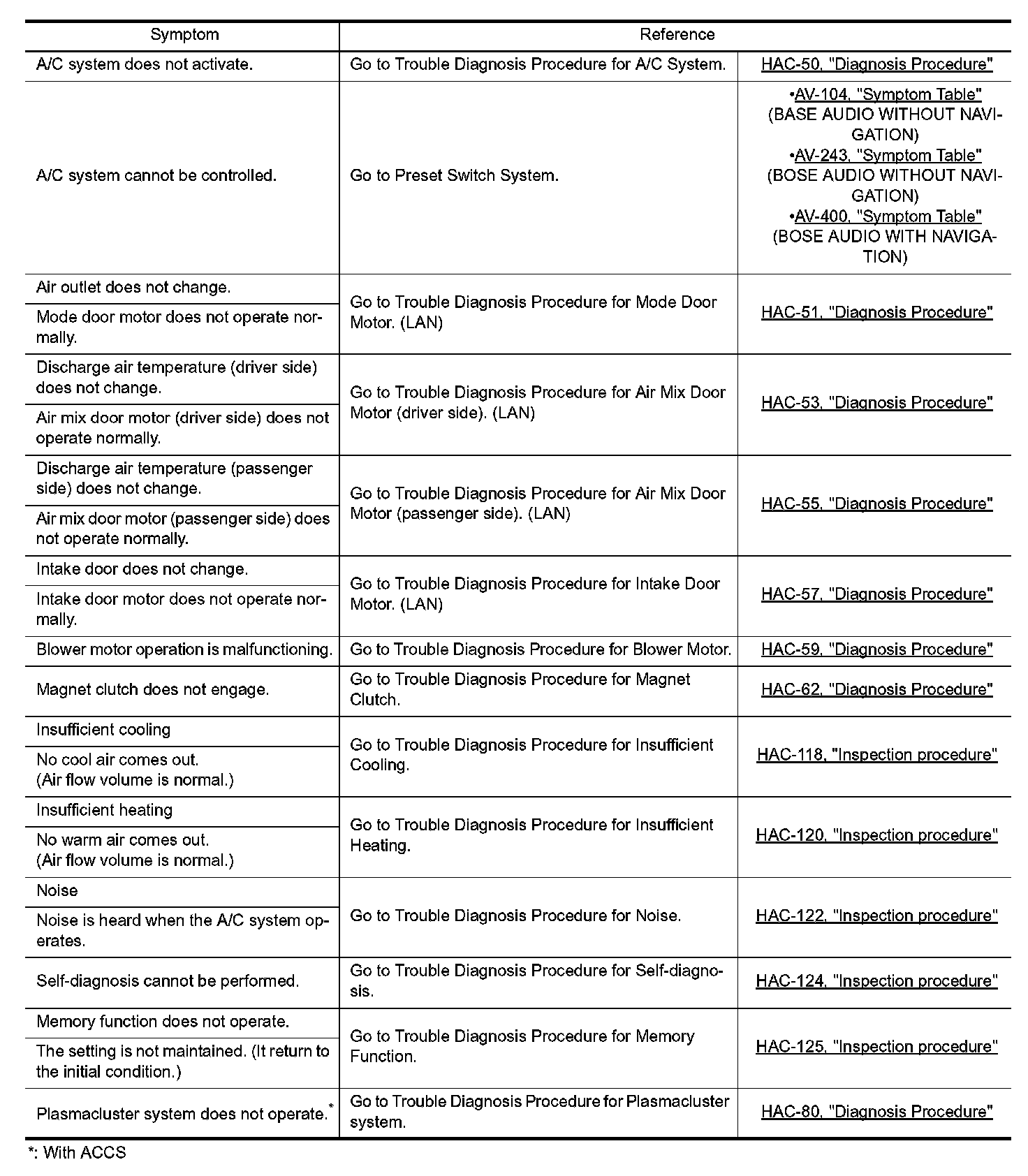

Diagnosis Chart By Symptom


Diagnosis Chart By Symptom:
