Diagnosis Procedure

INTAKE DOOR MOTOR


Description


COMPONENT DESCRIPTION

Intake Door Motor

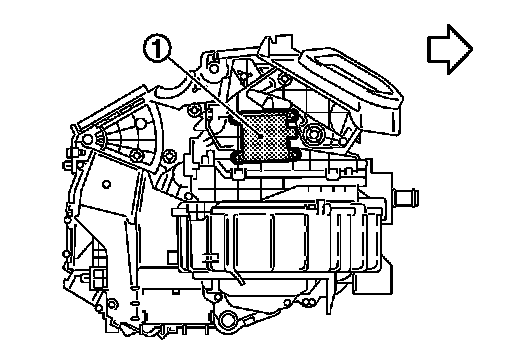

The intake door motor (1) is attached to the blower unit. It rotates so that air is drawn from inlets set by the unified meter and A/C amp.
Motor rotation is conveyed to a lever which activates the intake door.

White arrow: Vehicle front




INTAKE DOOR MOTOR


Diagnosis Procedure

1.CHECK INTAKE DOOR CONTROL LINKAGE
Check intake door control linkage is properly installed. Exploded View.
Is it installed normally?
YES - GO TO 2.
NO - Repair or adjust control linkage.
2.CHECK POWER SUPPLY FOR INTAKE DOOR MOTOR

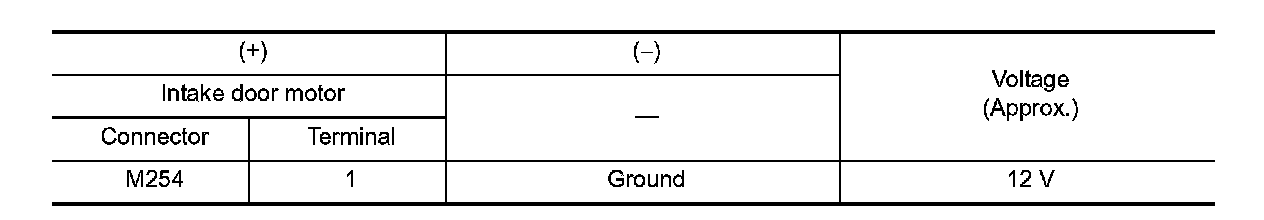

Check voltage between intake door motor harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - Repair harness or connector.
3.CHECK SIGNAL FOR INTAKE DOOR MOTOR
Confirm A/C LAN signal between intake door motor harness connector and ground using an oscilloscope.





Is the inspection result normal?
YES - GO TO 4.
NO - Repair harness or connector.
4.CHECK INTAKE DOOR MOTOR GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect intake door motor connector.

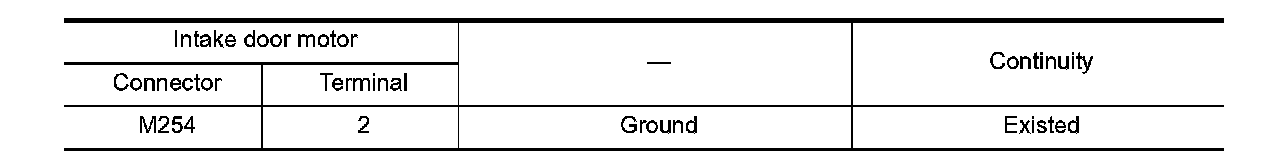

3. Check continuity between intake door motor harness connector and ground.





Is the inspection result normal?
YES - Replace intake door motor.
NO - Repair harness or connector.
