Home >> Infiniti >> 2010 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Heating and Air Conditioning >> Locations >> Automatic Air Conditioner

Automatic Air Conditioner





AUTOMATIC AIR CONDITIONER SYSTEM


Component Part Location

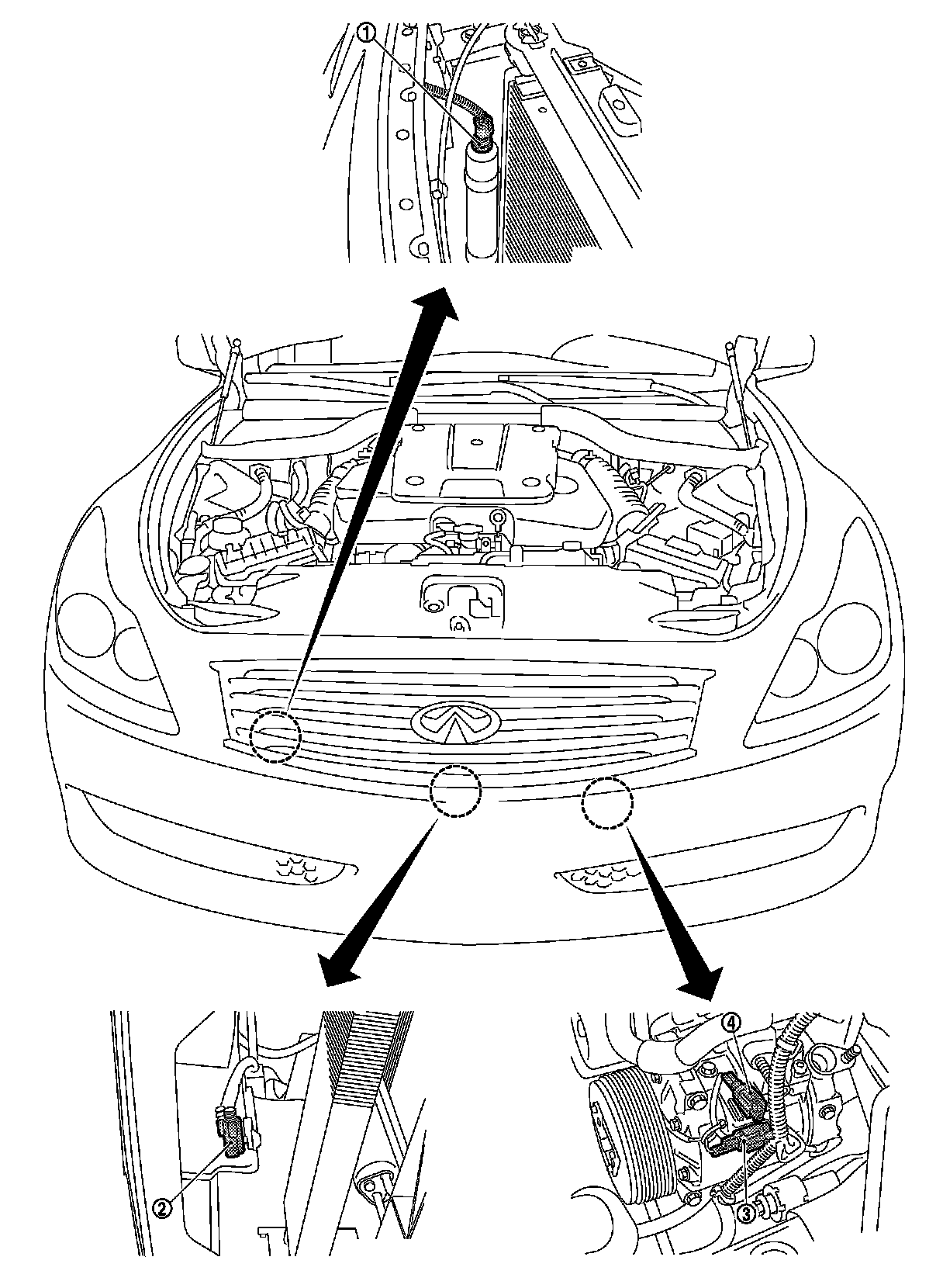

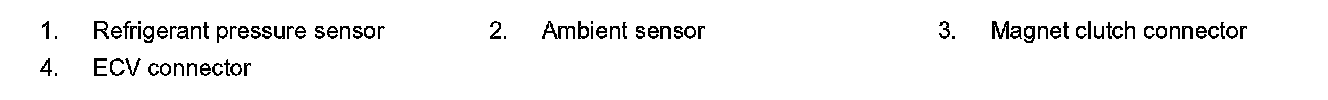

ENGINE COMPARTMENT

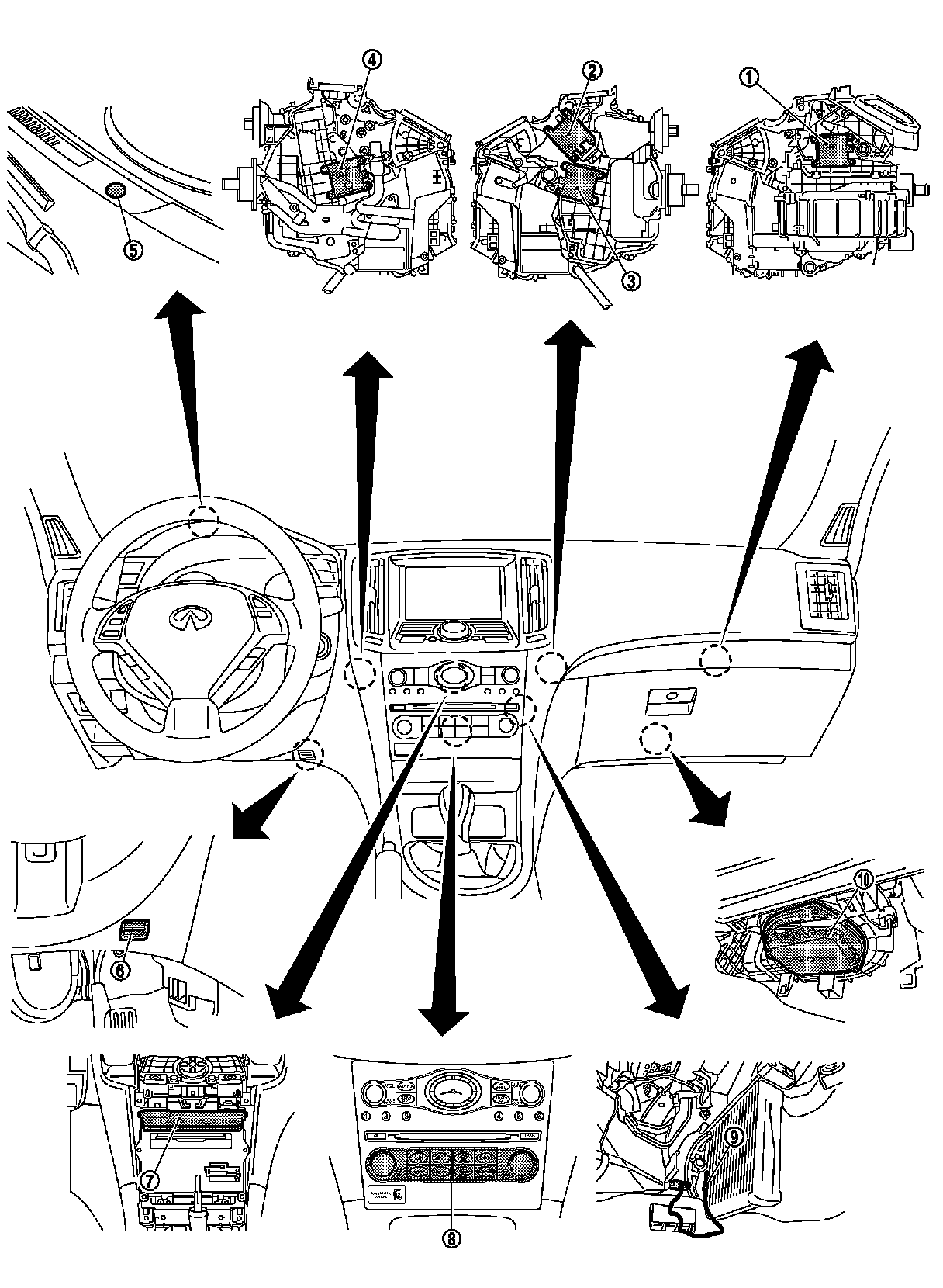

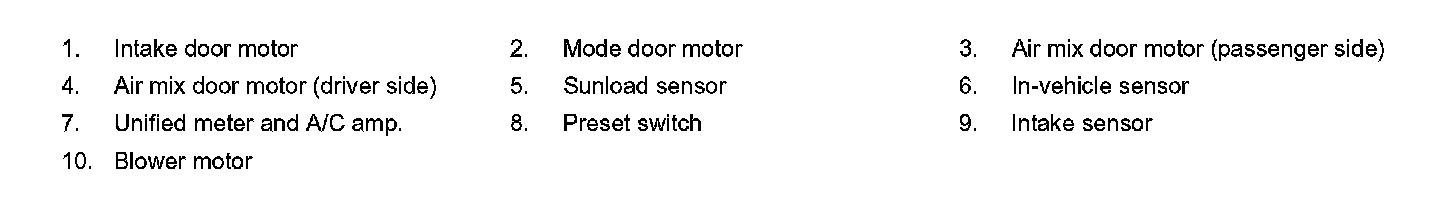

PASSENGER COMPARTMENT
