System Description

ACCS (ADVANCE CLIMATE CONTROL SYSTEM)


System Description

The adoption of the ACCS (advance climate control system) enables the maintenance of clean air in the vehicle by combining the plasmacluster ion generation function, the automatic recirculation control function, and a high performance filter.

NOTE:
- Plasmacluster ion technology developed by Sharp Corporation is installed in this item.
- Plasmacluster is a trademark of Sharp Corporation.

PLASMACLUSTER SYSTEM
- The Plasmacluster ion generation function operates synchronized with the blower motor. The Plasmacluster ion generation function operates when the blower motor operates.
- Operating state of Plasmacluster system is displayed.
- Plasmacluster system switches display according to air flow volume as shown in the following figure.

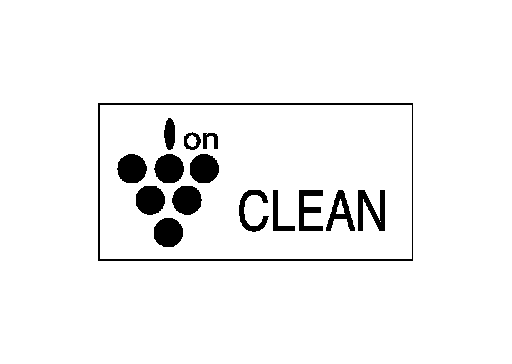

- When air flow is low.

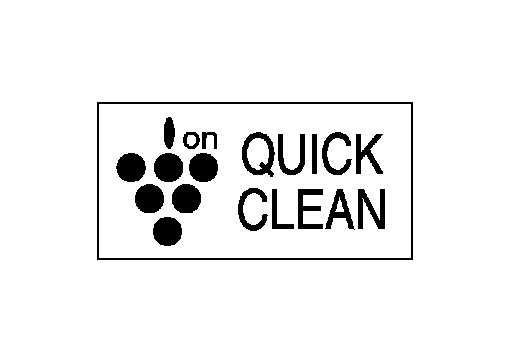

- When air flow is high.

AUTO INTAKE CONTROL SYSTEM

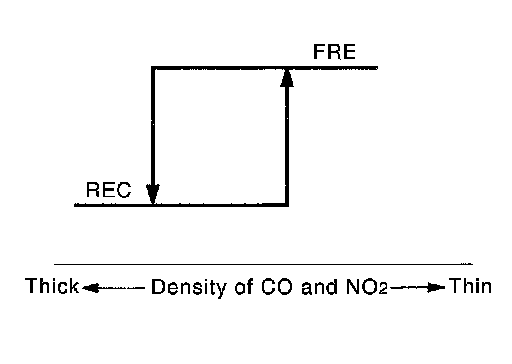

In addition to the regular automatic control, intake door condition is controlled by gas sensor output signal when auto intake mode is selected. This system automatically controls the inlet to prevent a smell of exhaust gas from getting into vehicle by receiving signals from the gas sensor that detects ambient atmospheric CO and NO
