Center Ventilator Grille

DUCT AND GRILLE


CENTER VENTILATOR GRILLE : Removal and Installation


REMOVAL
1. Remove cluster lid D. (A/T models) or (M/T models).

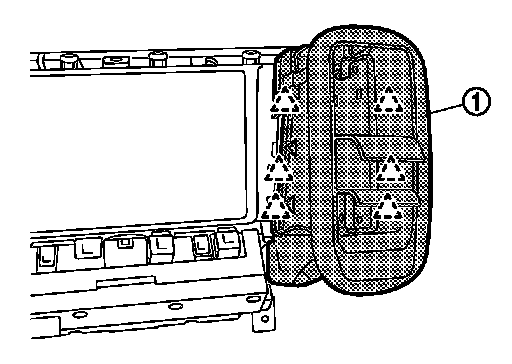

2. Disengage the pawls, and then remove center ventilator grille
(1).

Triangle: pawl


INSTALLATION
Installation is basically the reverse order of removal.
