Piston

HOW TO SELECT PISTON AND BEARING


Piston


WHEN NEW CYLINDER BLOCK IS USED

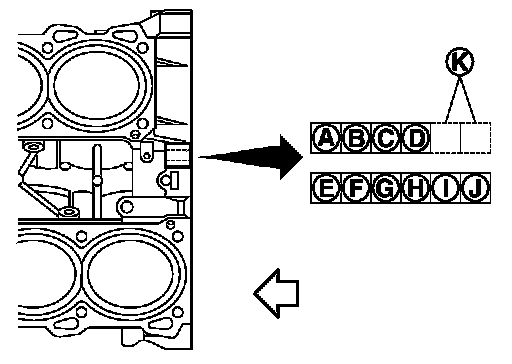

Check the cylinder bore grade ("1", "2" or "3") on rear side of cylinder block, and select piston of the same grade.






NOTE:
Piston is available with piston pin as a set for the service part. (Only "0" grade piston pin is available.)

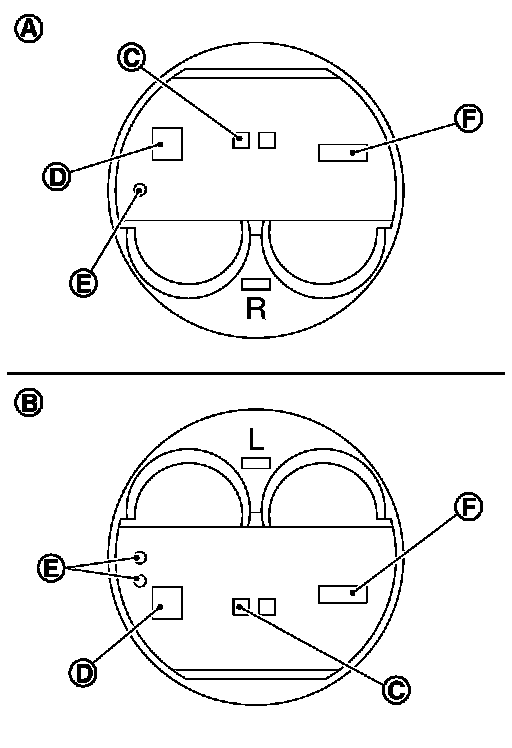

WHEN NEW CYLINDER BLOCK IS REUSED
1. Measure the cylinder bore inner diameter. Service and Repair.





2. Determine the bore grade by comparing the measurement with the values under the cylinder bore inner diameter of the "PISTON SELECTION TABLE".





3. Select piston of the same grade.

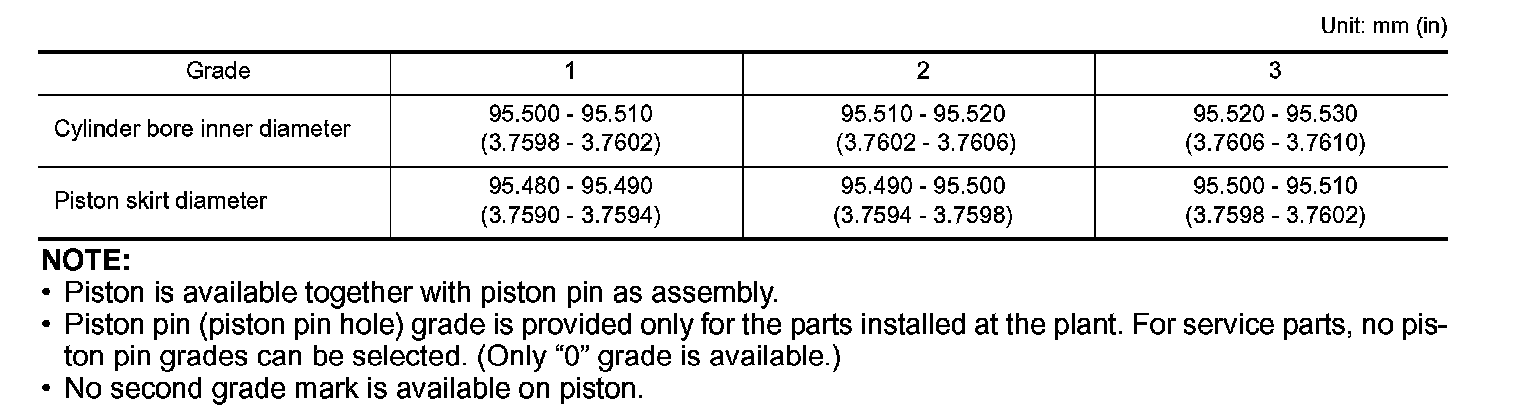

PISTON SELECTION TABLE
