Assembly

OIL PUMP


Assembly

Note the following, and assemble in the reverse order of disassembly.

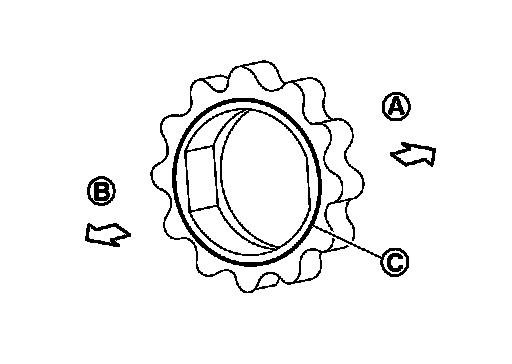

- Install oil pump inner rotor with the groove faced to oil pump cover side.

A : Oil pump body side
B : Oil pump cover side
C : Groove
