Component Inspection (Cooling Fan Relay)

COOLING FAN


Component Inspection (Cooling Fan Relay)

1.CHECK COOLING FAN RELAY
1. Turn ignition switch OFF.
2. Remove cooling fan relay.

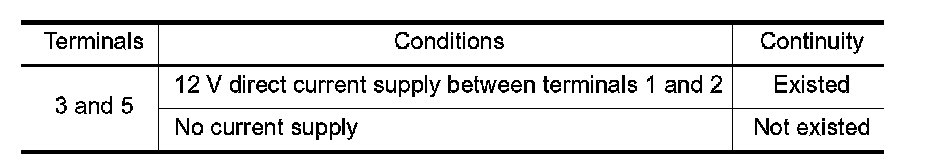

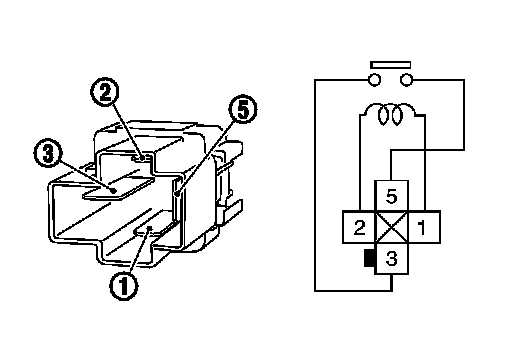

3. Check the continuity between cooling fan relay terminals under the following conditions.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace cooling fan relay.
