Component Inspection (Cooling Fan Motor)





COOLING FAN


Component Inspection (Cooling Fan Motor)

1.CHECK COOLING FAN MOTOR
1. Turn ignition switch OFF.
2. Disconnect cooling fan control module harness connectors E301, E302.

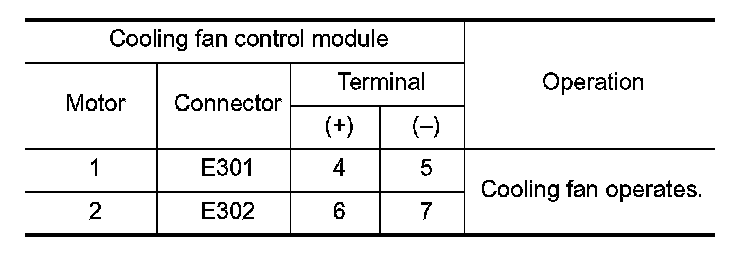

3. Supply cooling fan control module terminals with battery voltage and check operation.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace cooling fan motor.
