Mirror Memory Switch





DOOR MIRROR SYSTEM

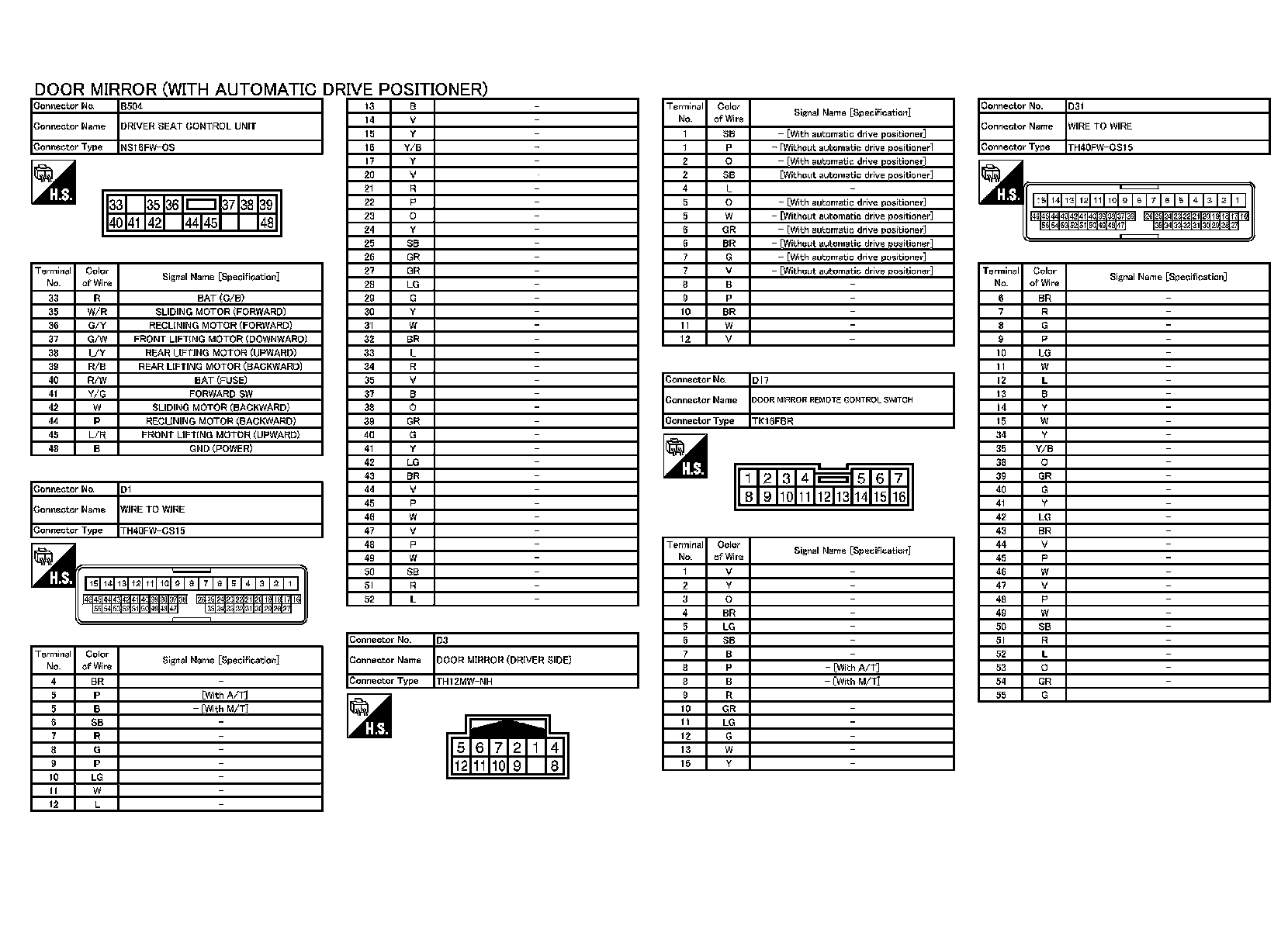

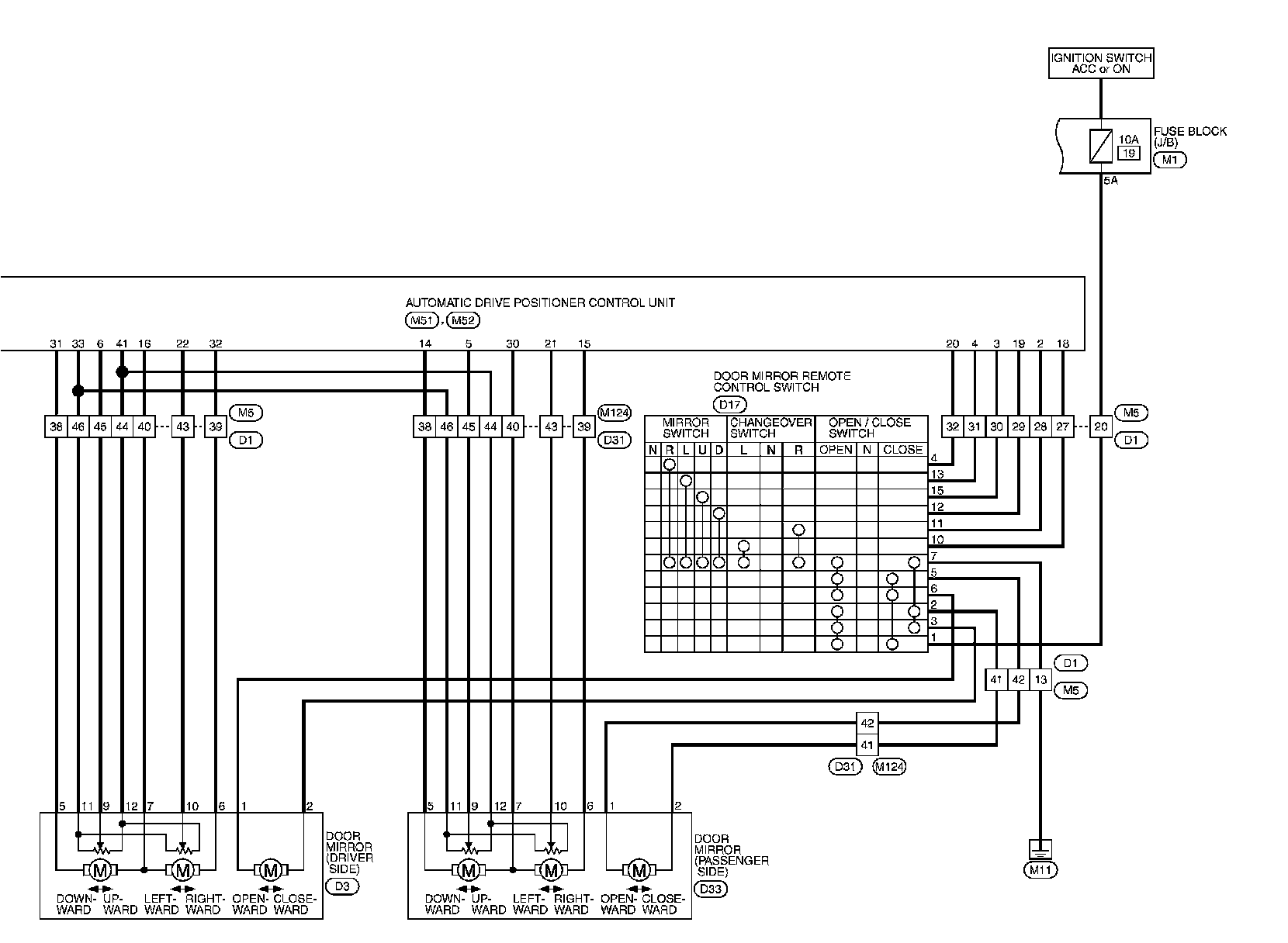

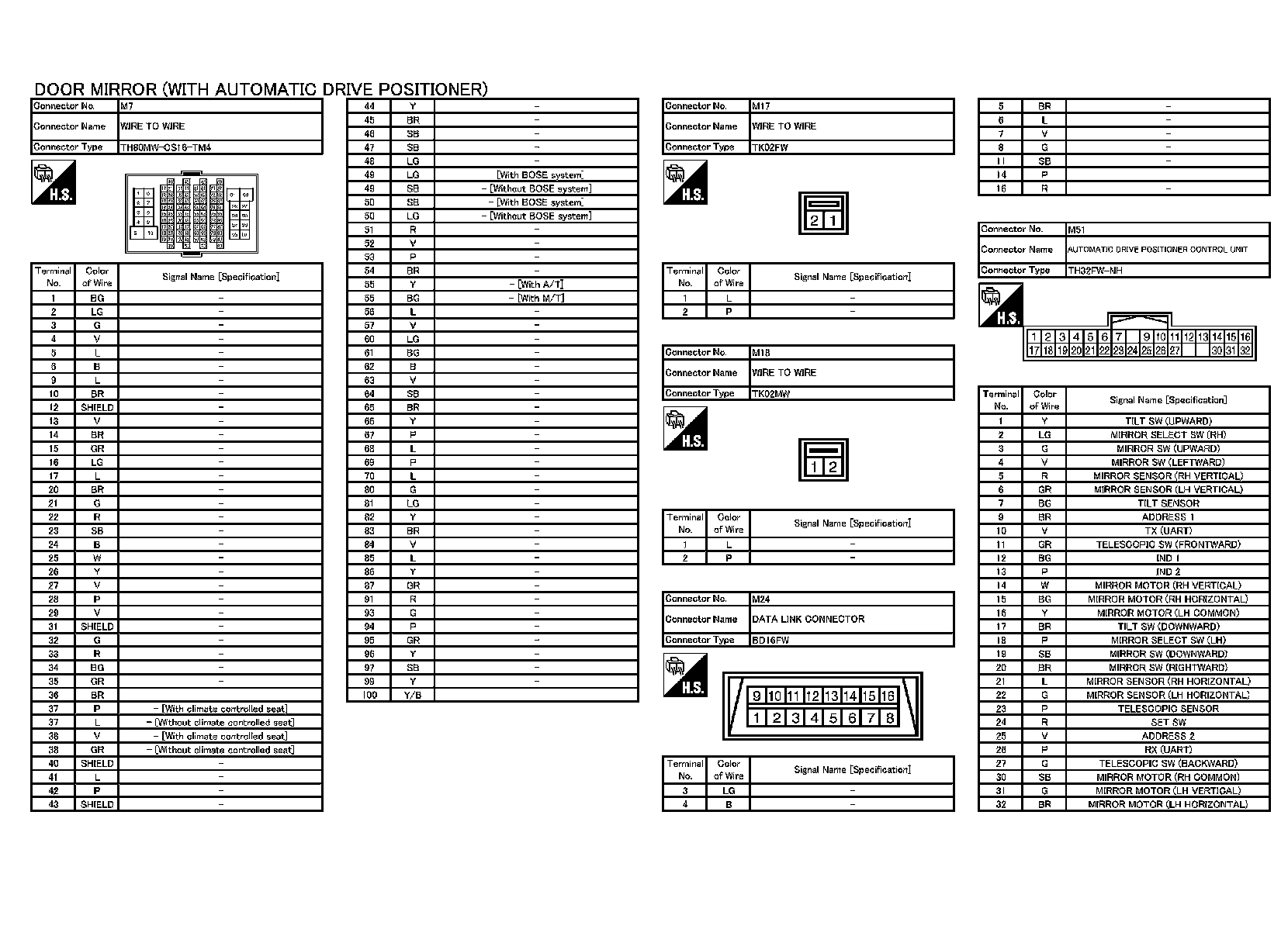

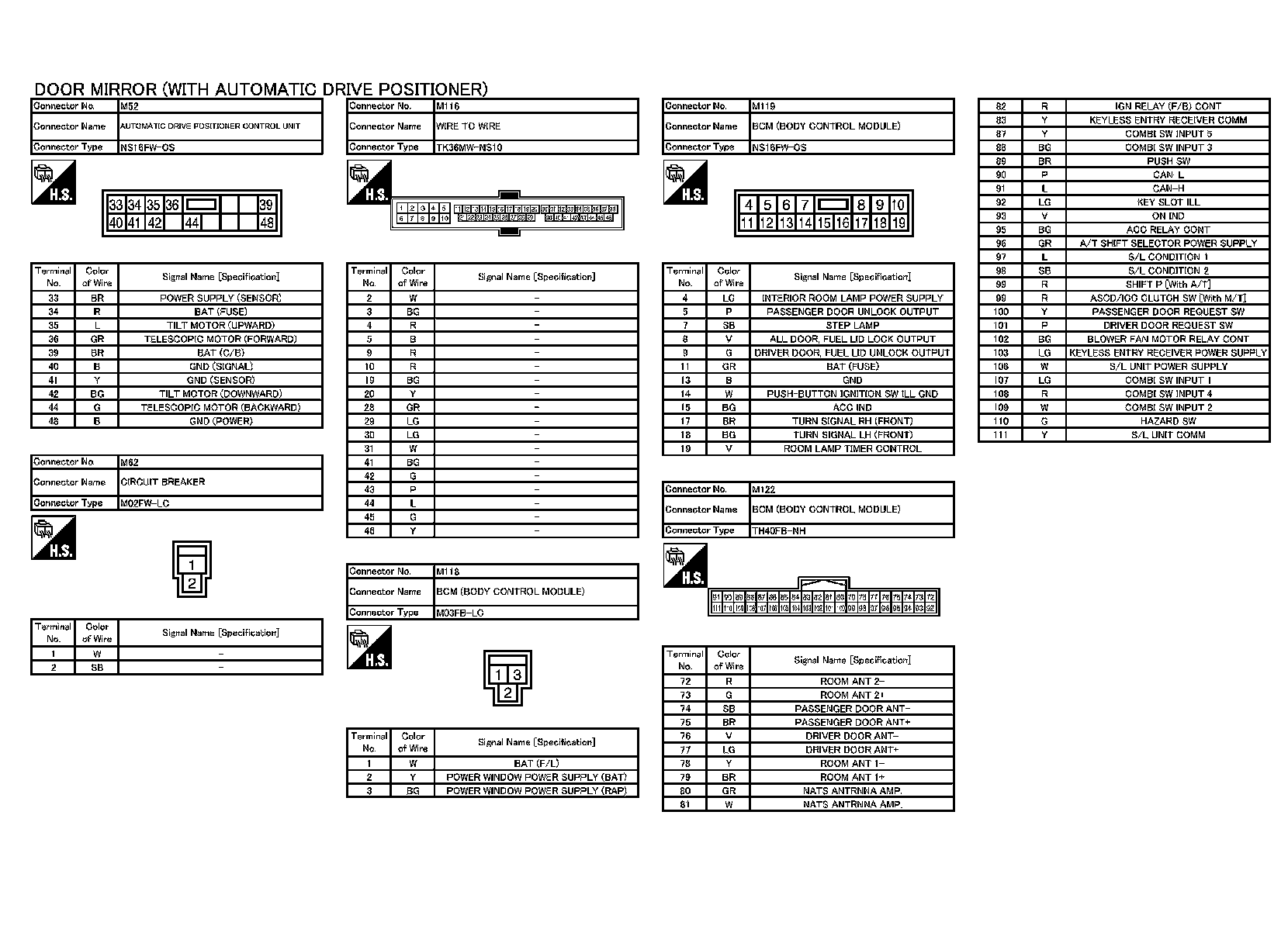

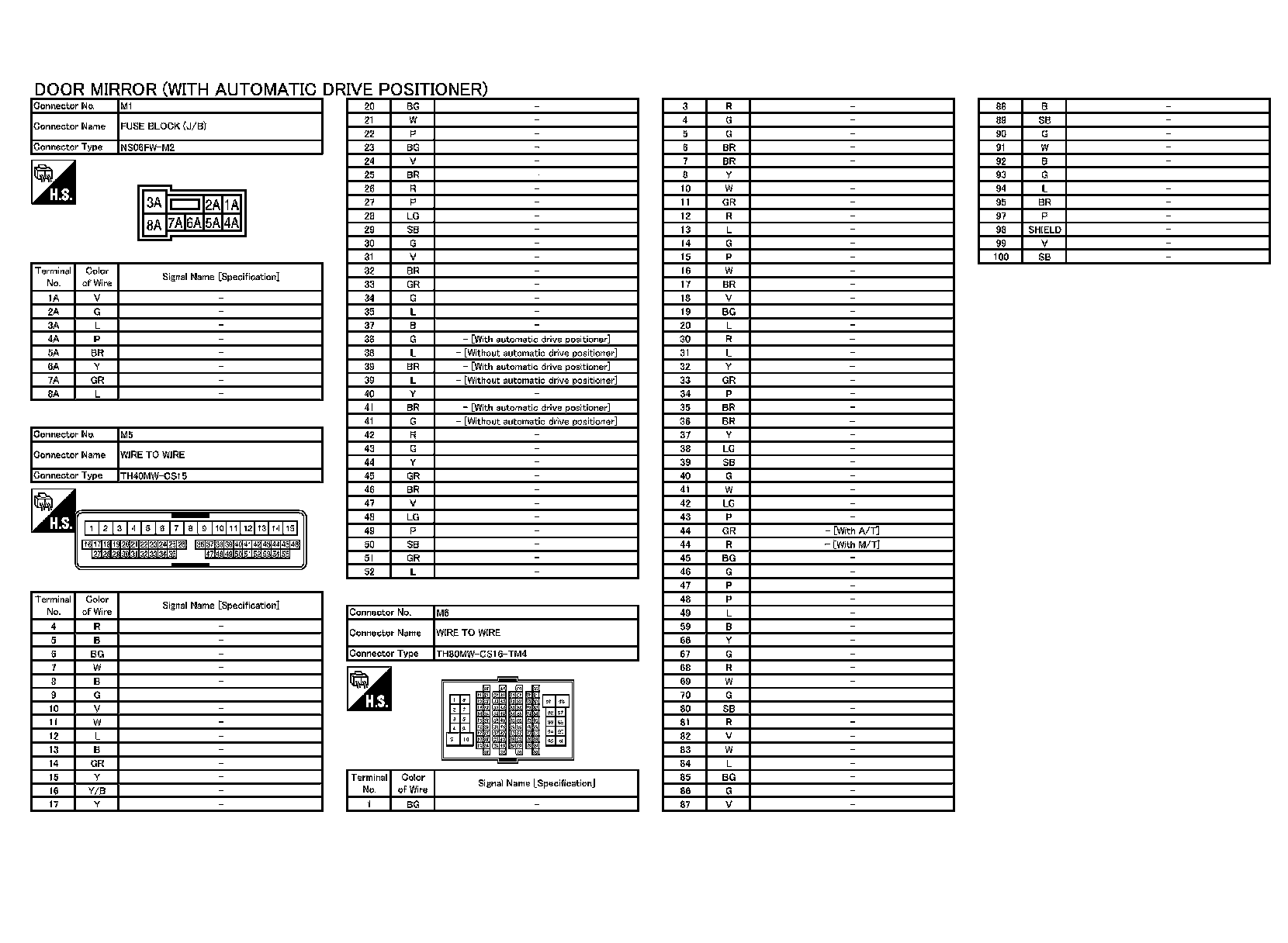

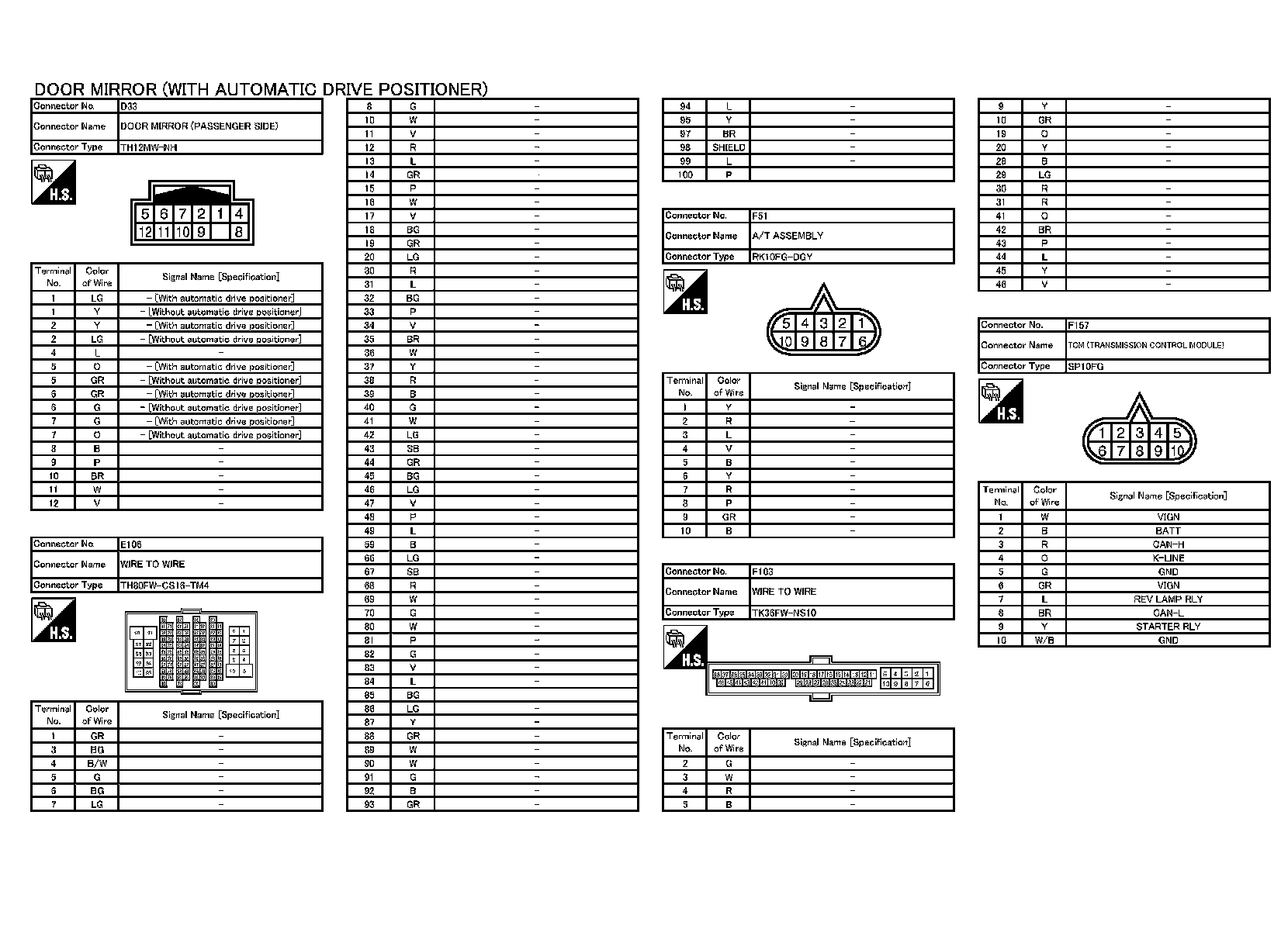

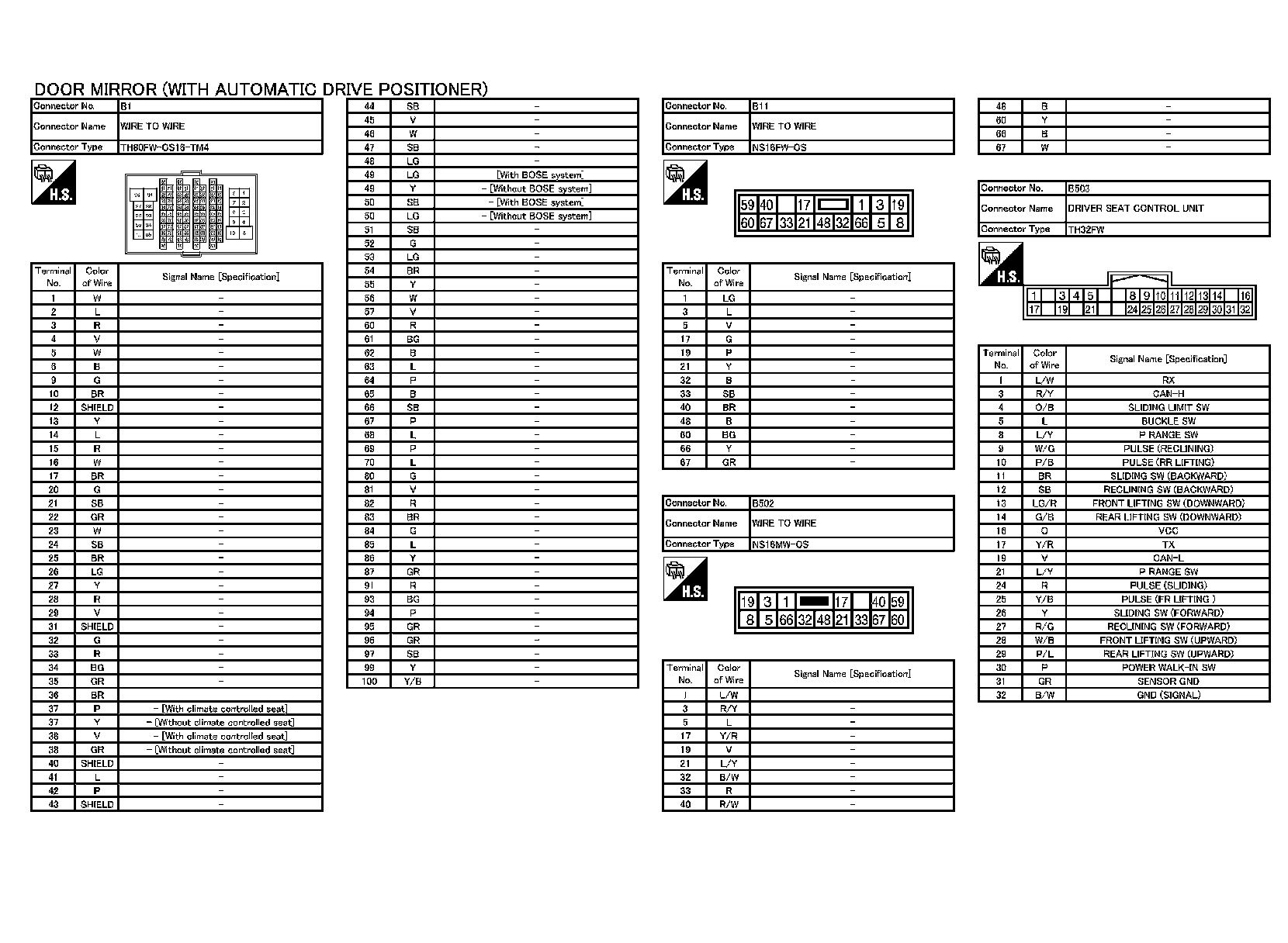

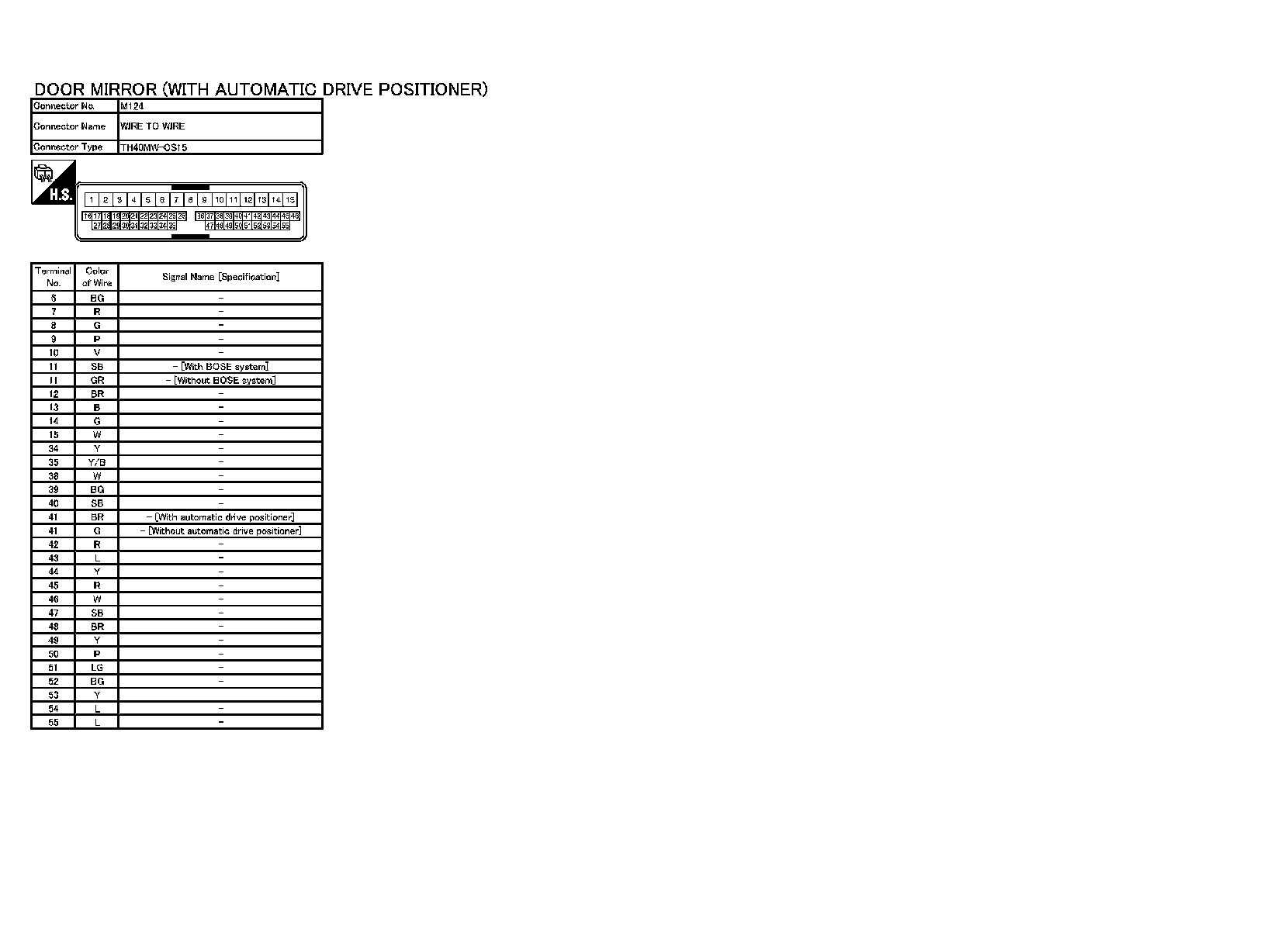

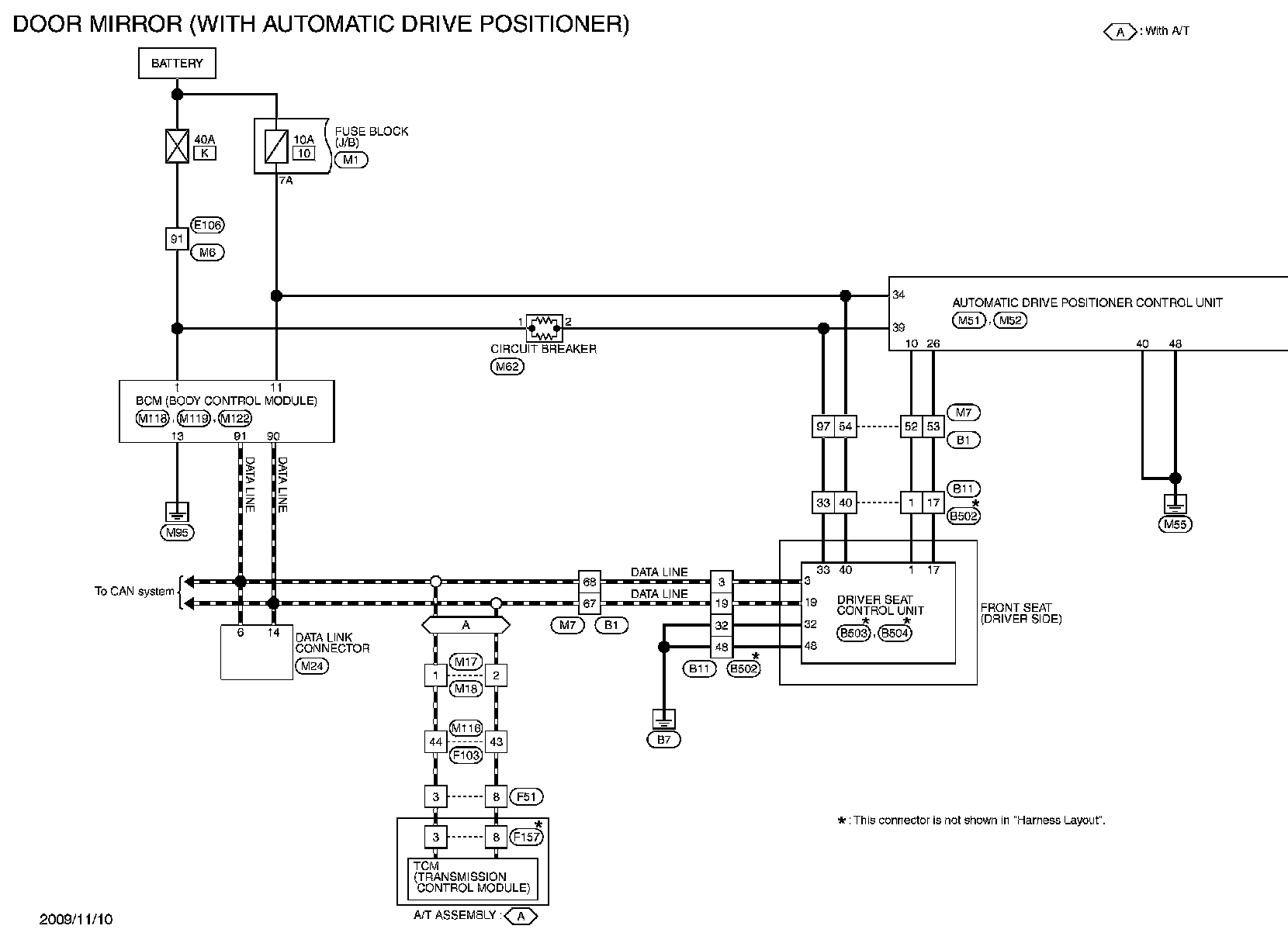

Wiring Diagram - DOOR MIRROR (WITH AUTOMATIC DRIVE POSITIONER) -
