Tail Lamp





PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

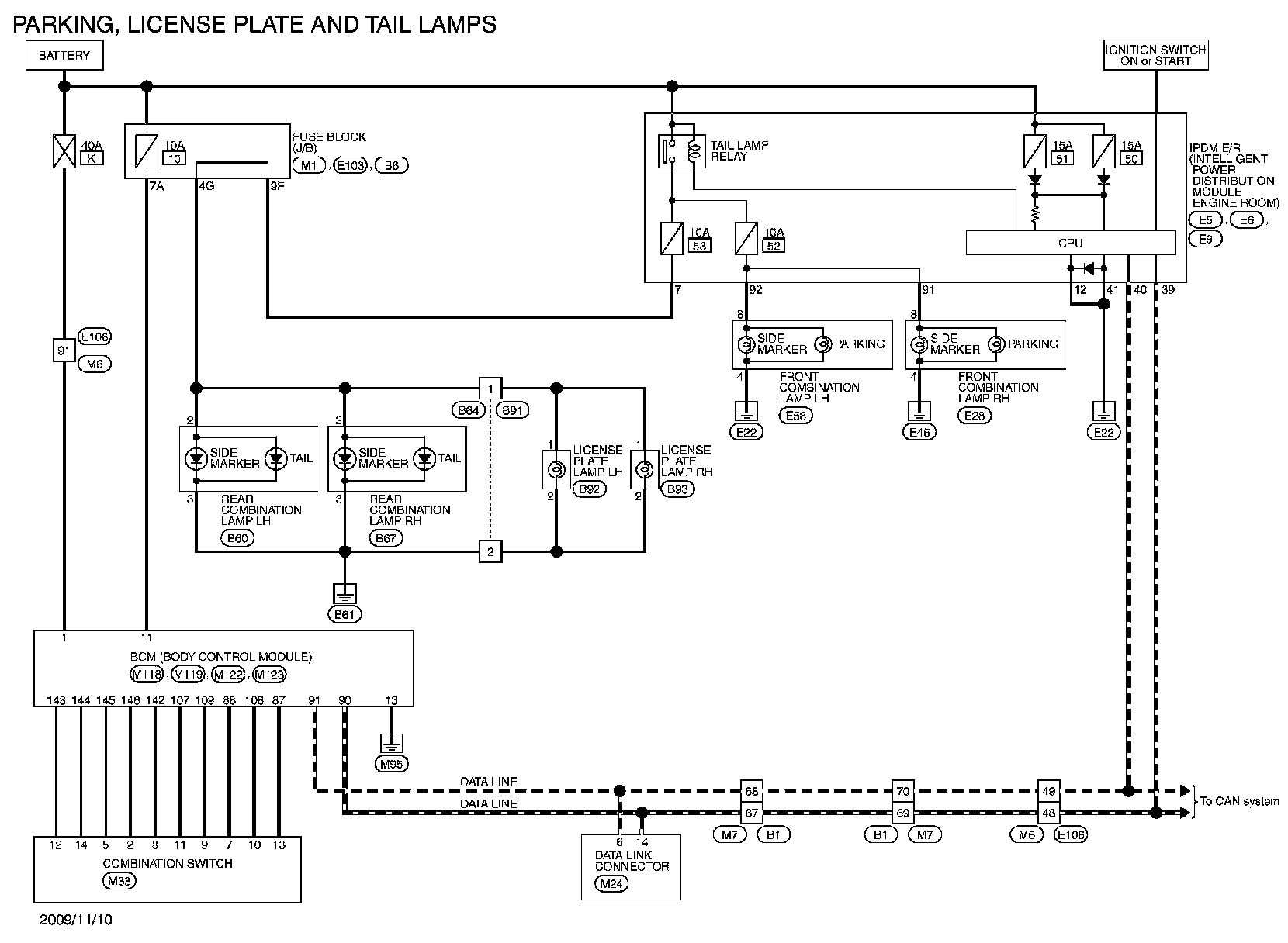

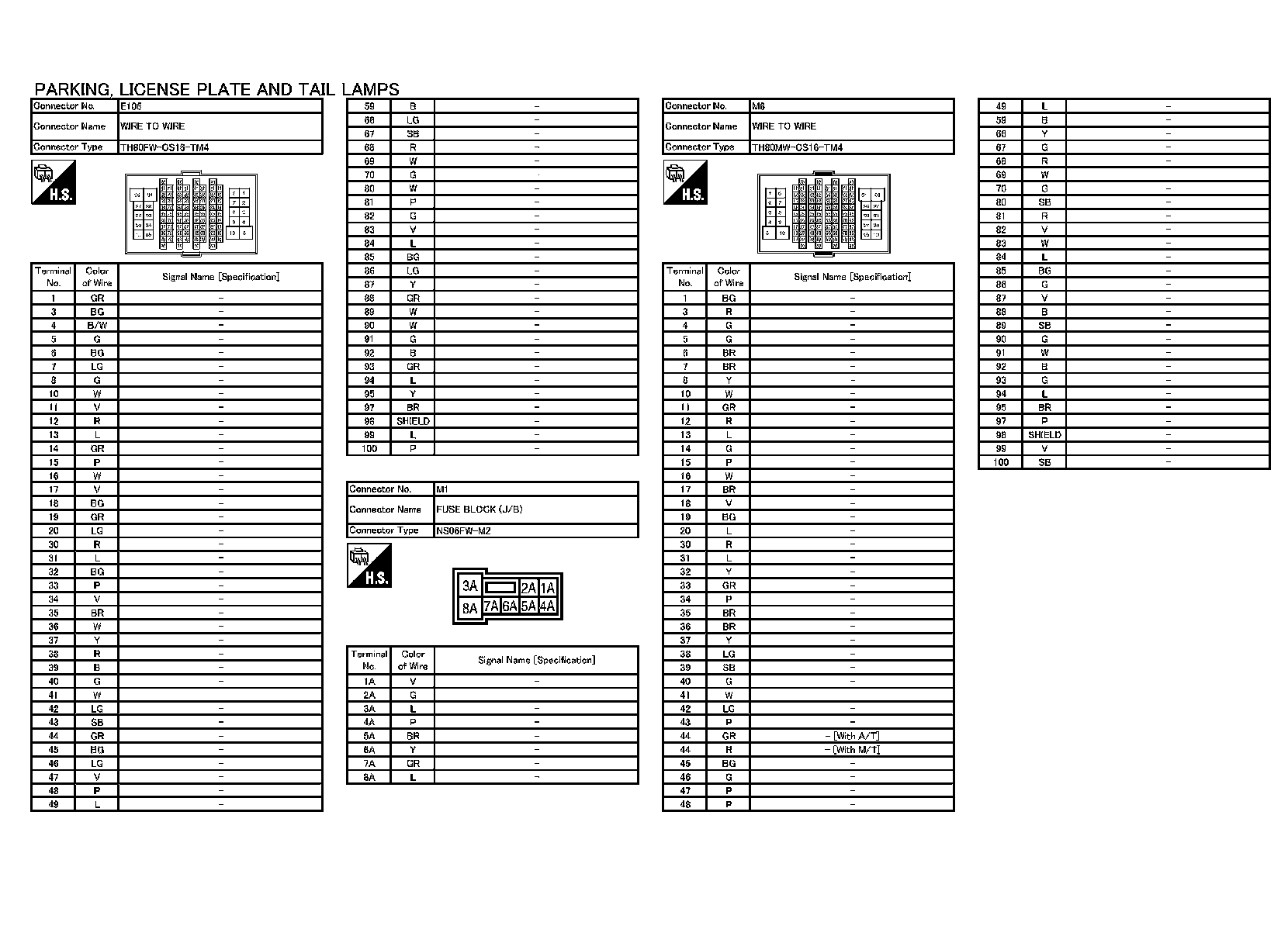

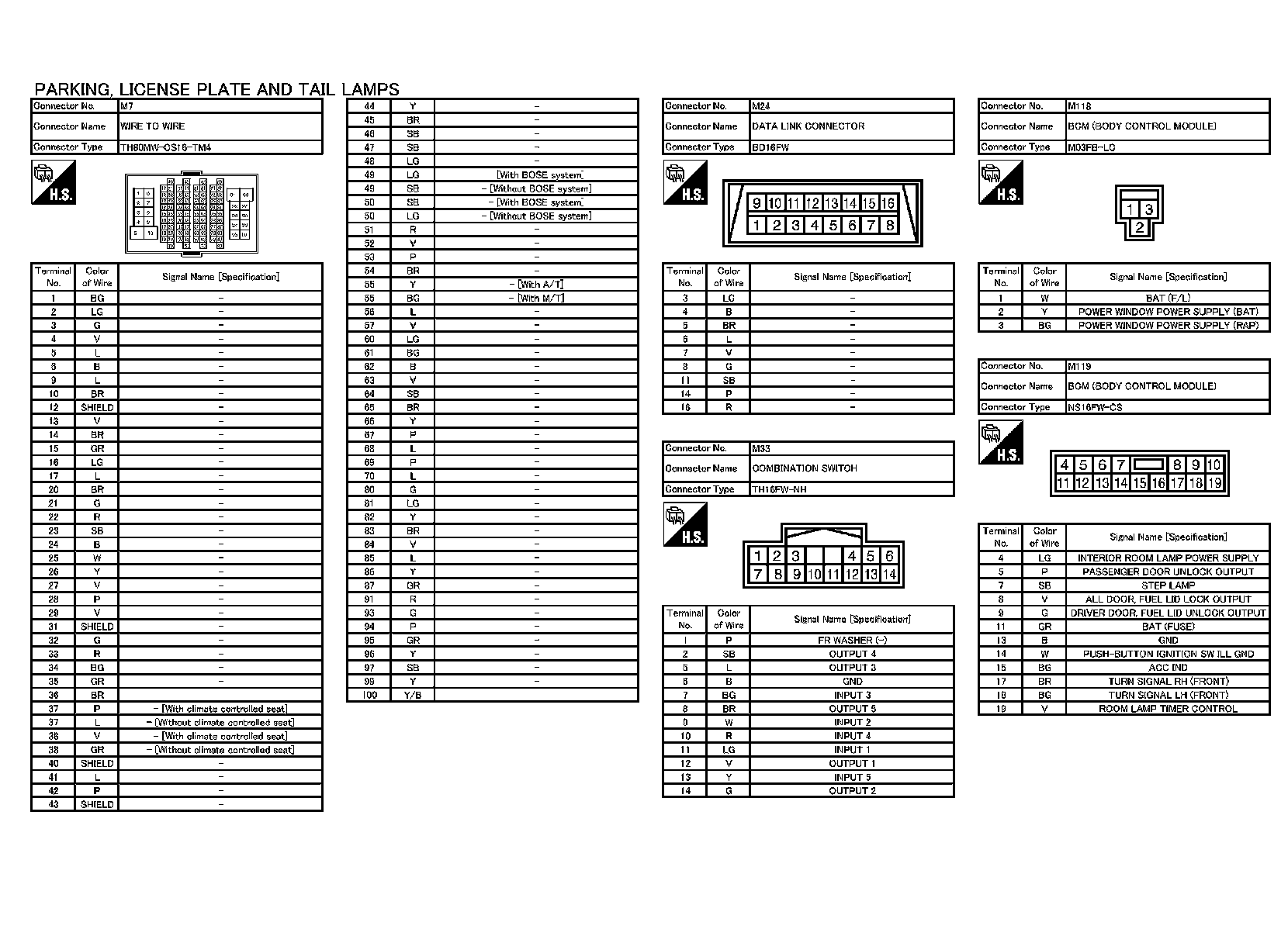

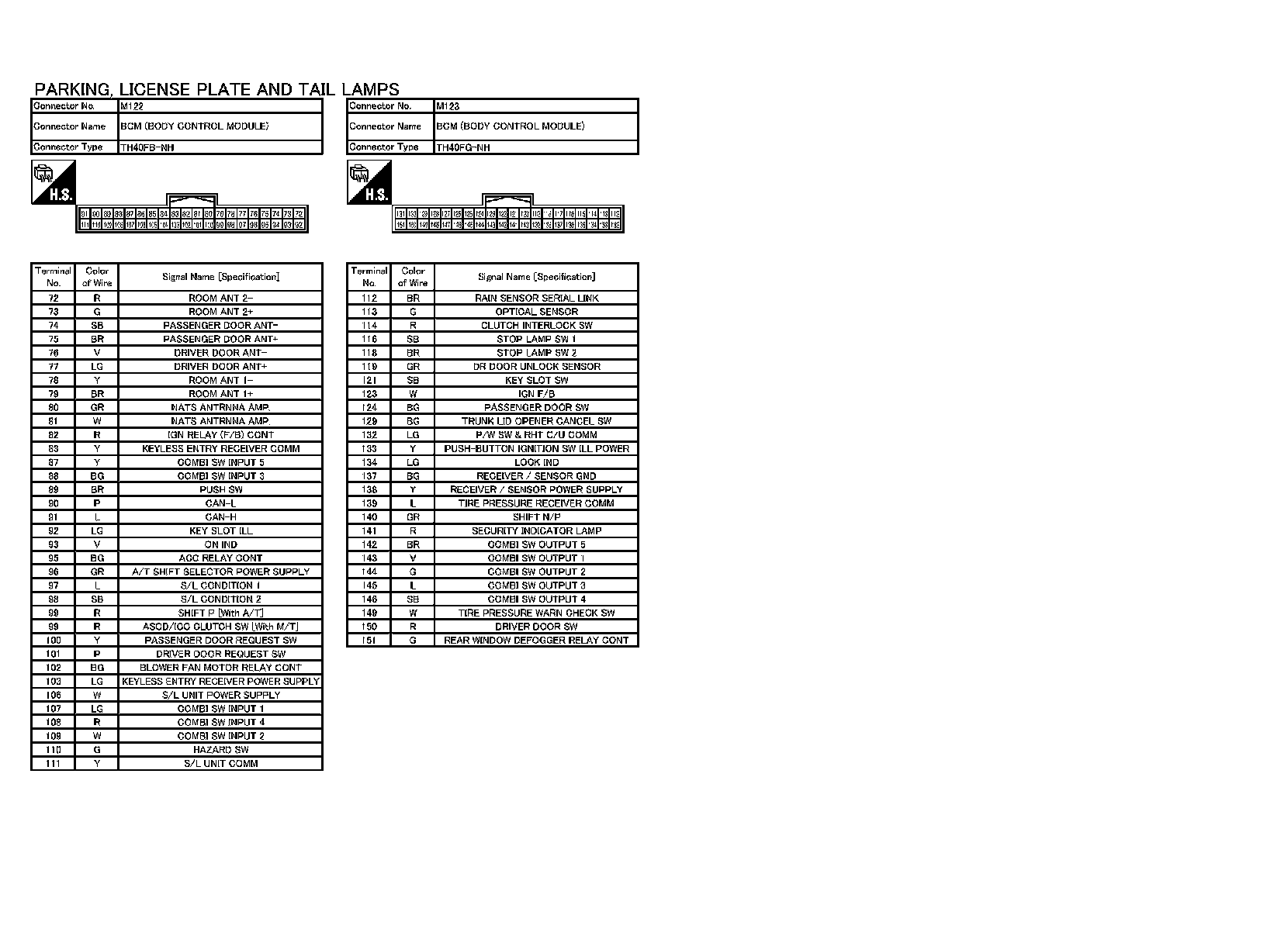

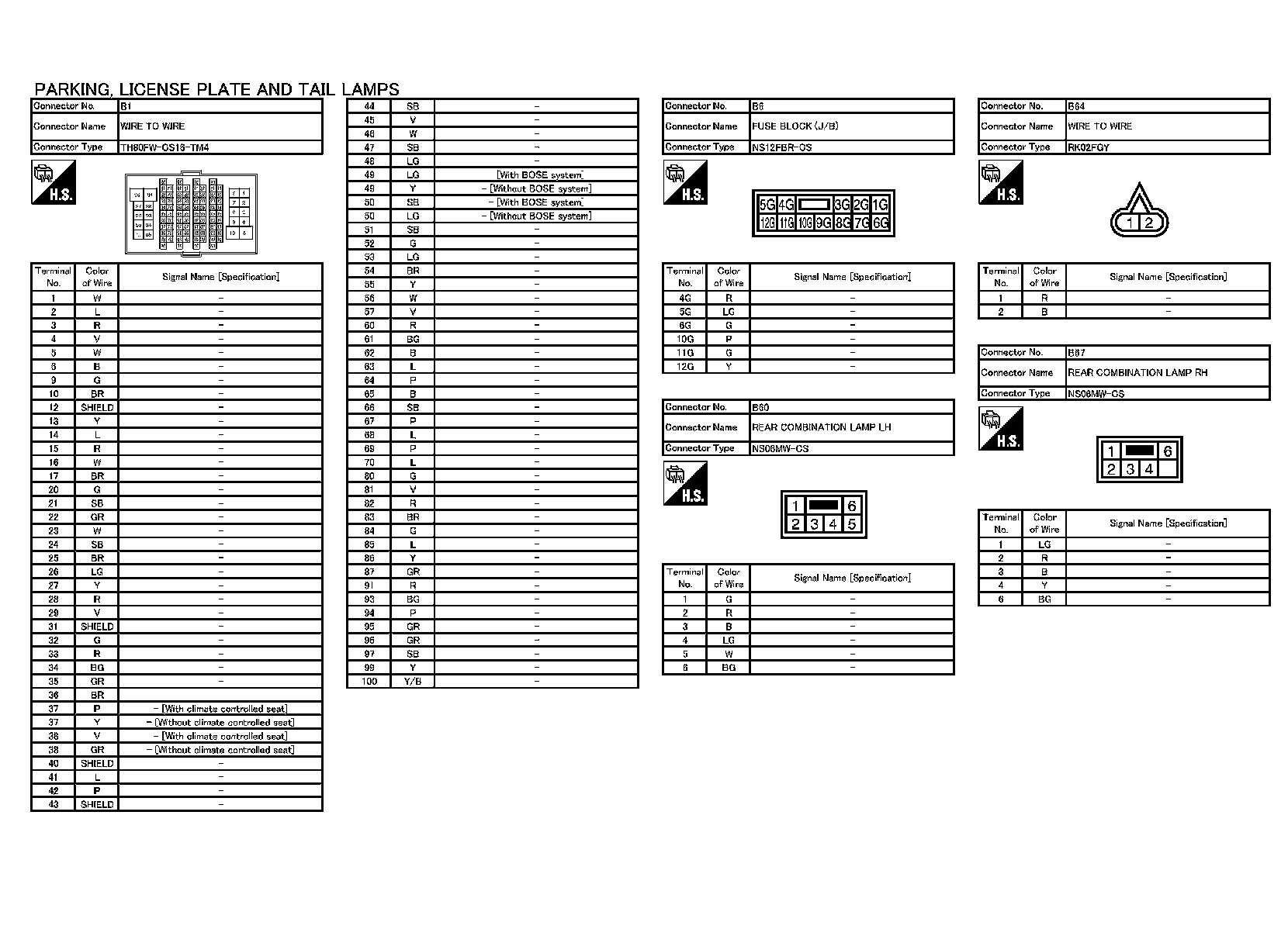

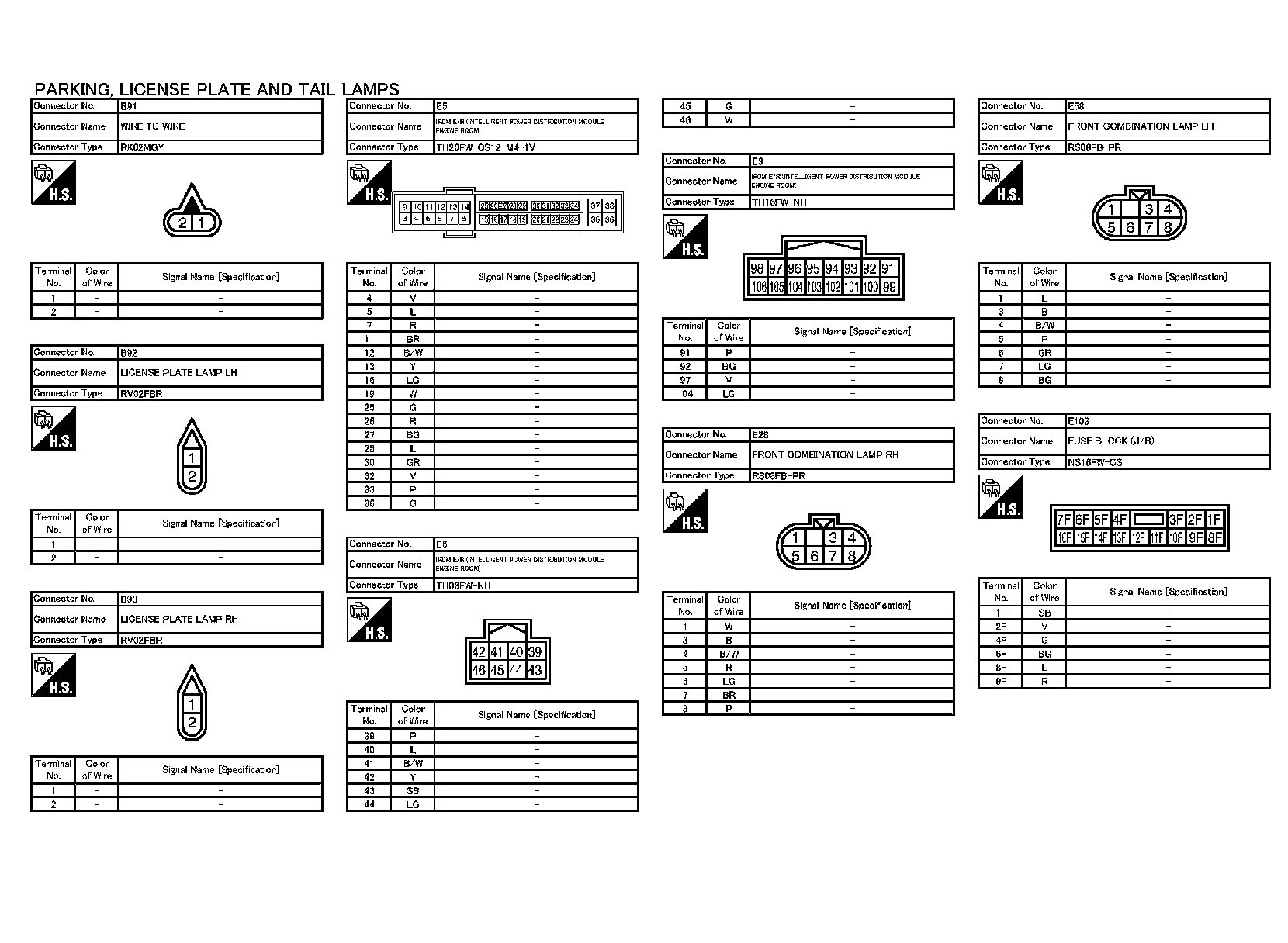

Wiring Diagram - PARKING LICENSE PLATE AND TAIL LAMPS -
