CONSULT-III Function (ICC)

DIAGNOSIS SYSTEM (ICC SENSOR INTEGRATED UNIT)


CONSULT-III Function (ICC)


DESCRIPTION

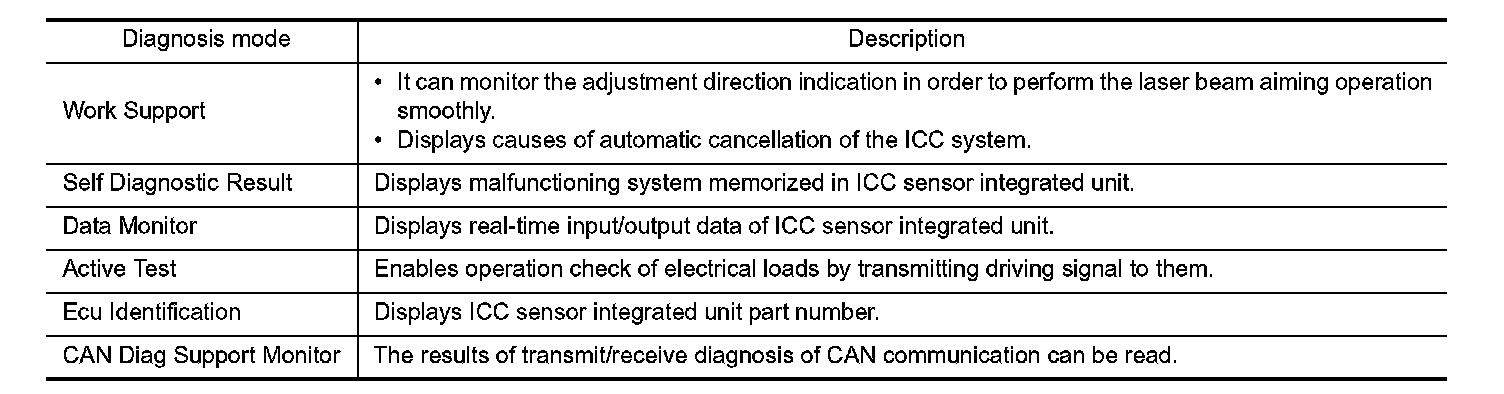

CONSULT-III performs the following functions via CAN communication using ICC sensor integrated unit.

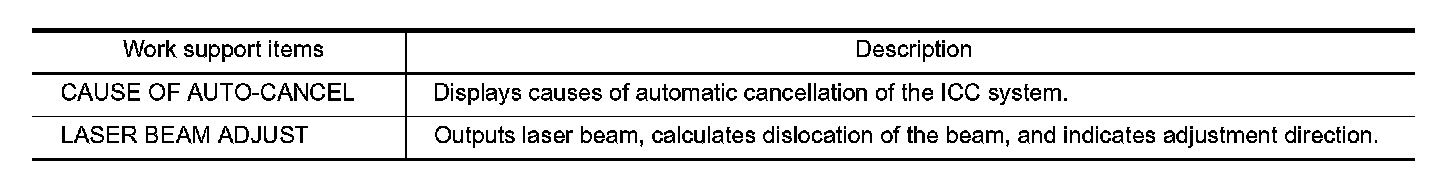

WORK SUPPORT

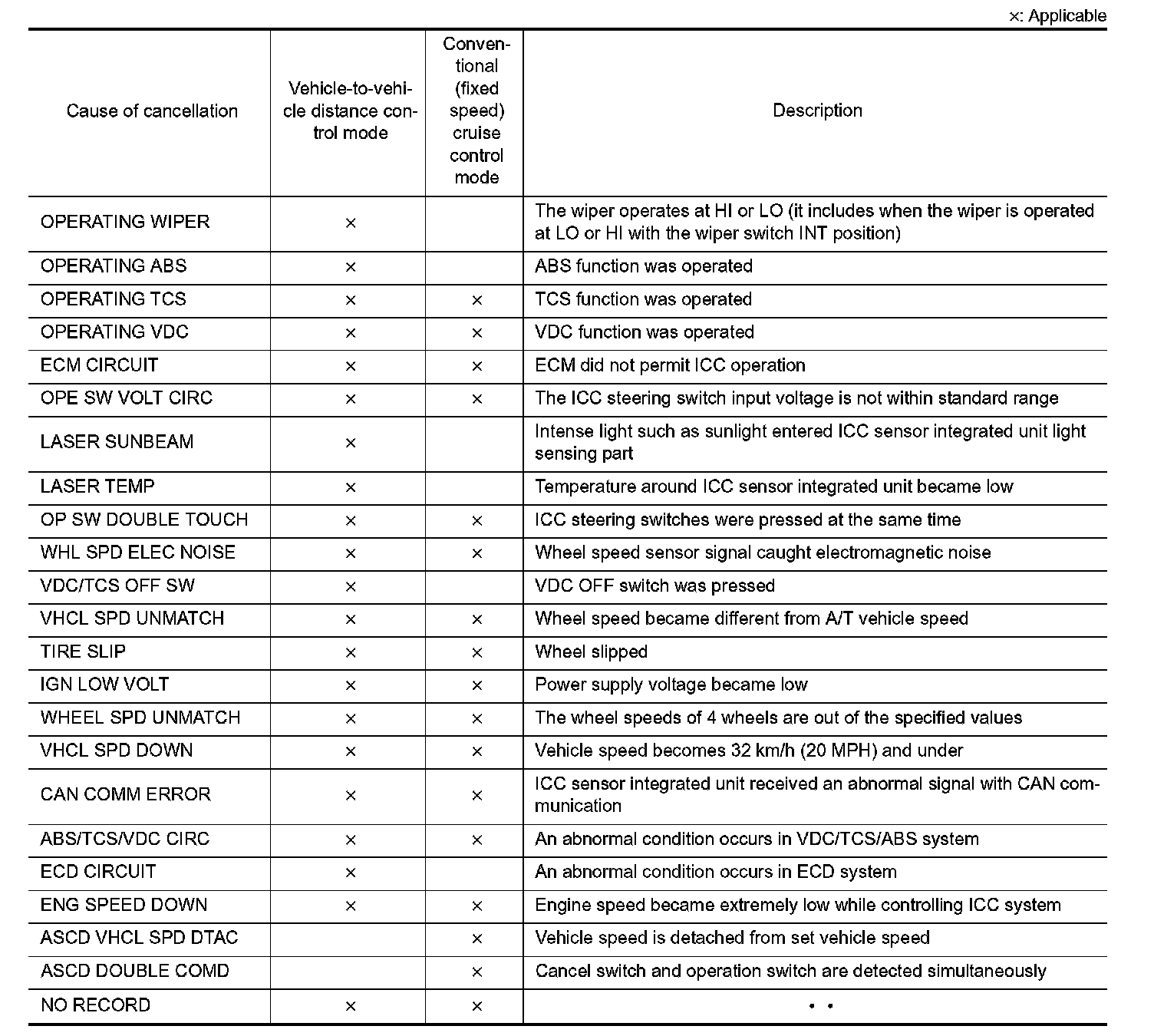

Display Items for The Cause of Automatic Cancellation

NOTE:
- Causes of the maximum five cancellations (system cancel) are displayed.
- The displayed cancellation causes display the number of the ignition switch ON/OFF up to 254. It is fixed to
254 if it is over 254. It returns to 0 when the same cancellation cause is detected again.






Laser Beam Adjust
Description.

SELF DIAGNOSTIC RESULT
Testing and Inspection.

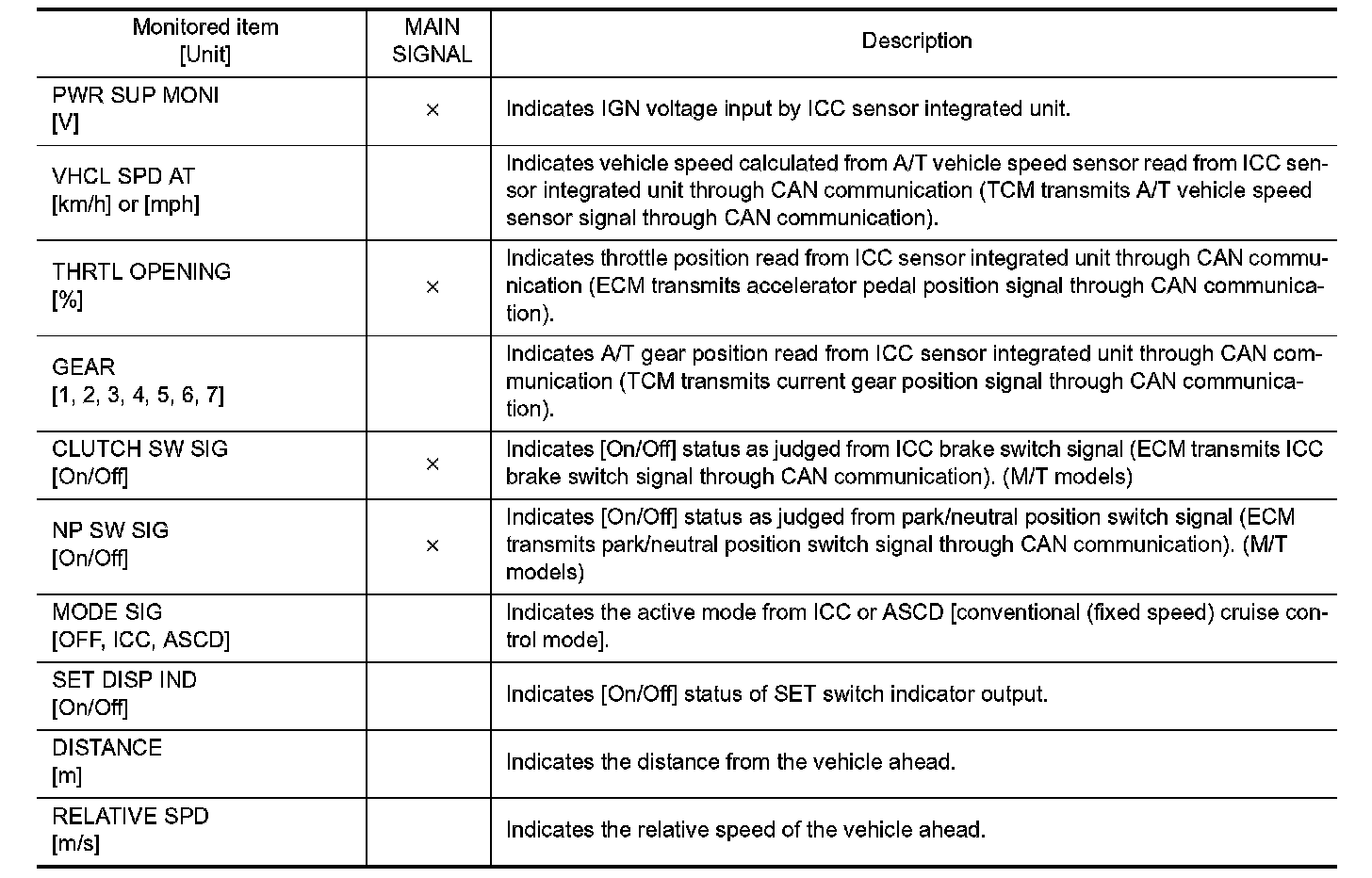

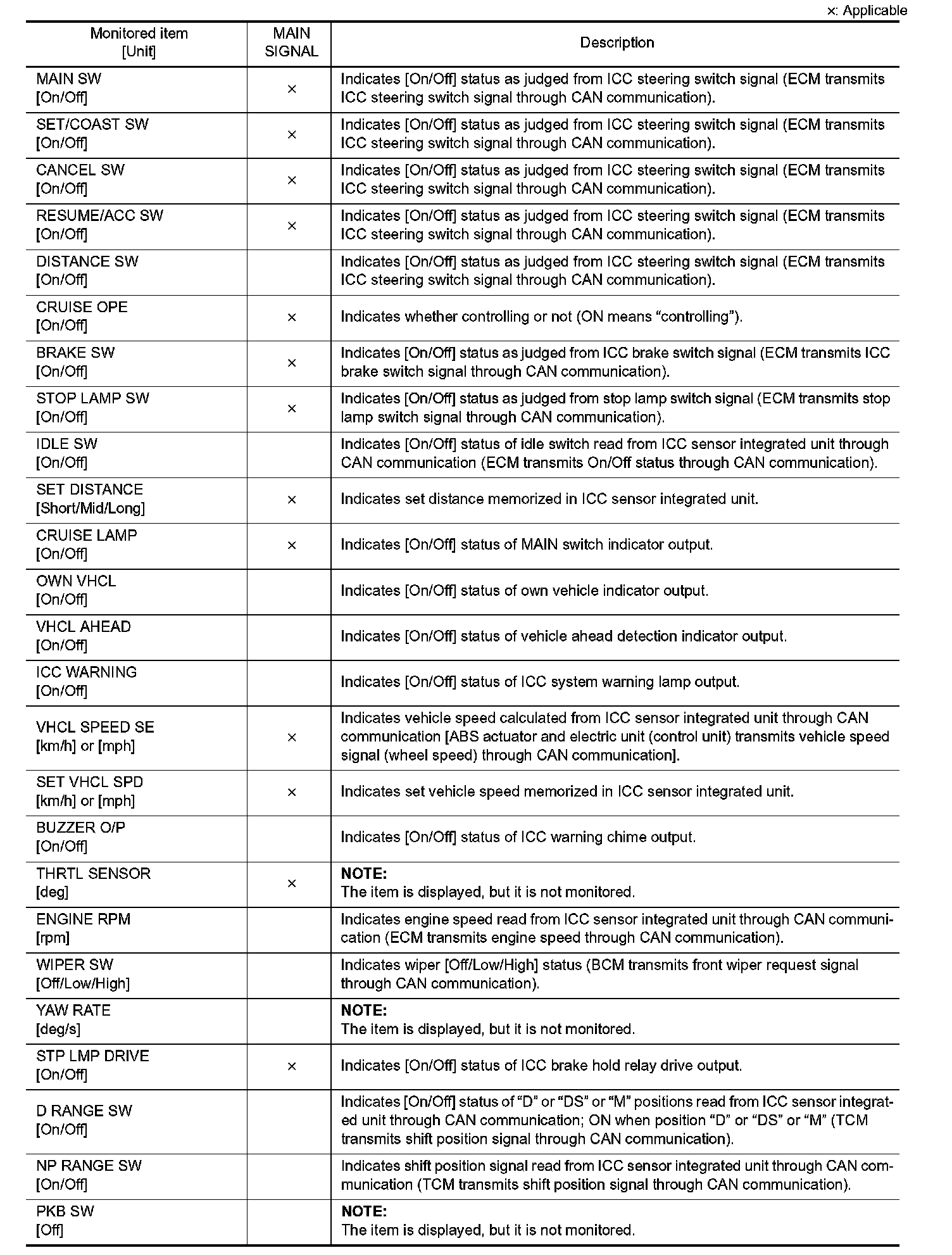

DATA MONITOR











ACTIVE TEST

CAUTION:
- Never perform "Active Test" while driving the vehicle.
- The "Active Test" cannot be performed when the ICC system warning lamp is illuminated.
- Shift the selector lever to "P" position, and then perform the test. (A/T models)
- Shift the shift knob to neutral position, applied parking brake and then perform the test. (M/T models)

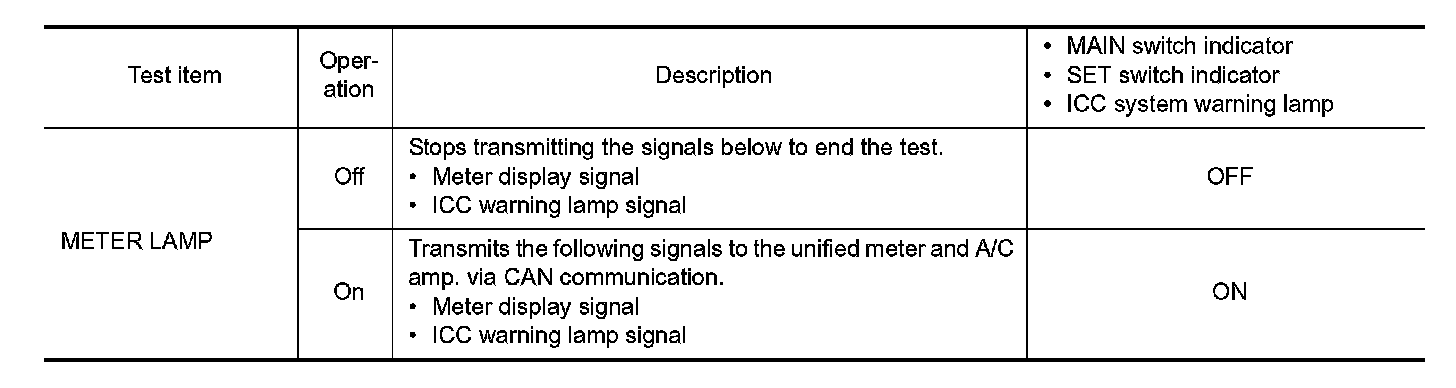

METER LAMP

NOTE:
The test can be performed only when the engine is running.

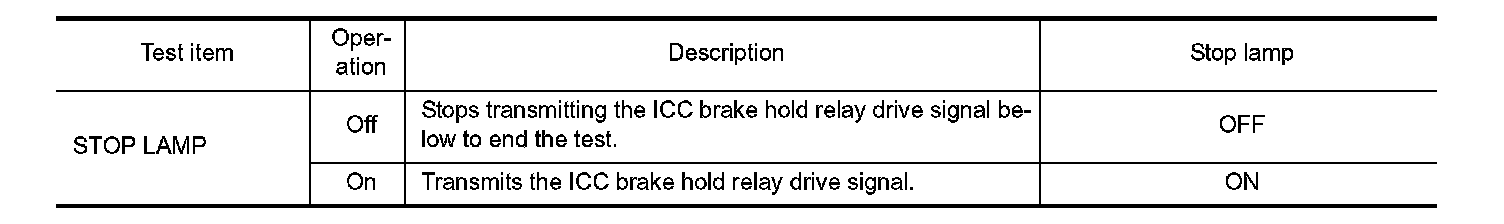

STOP LAMP

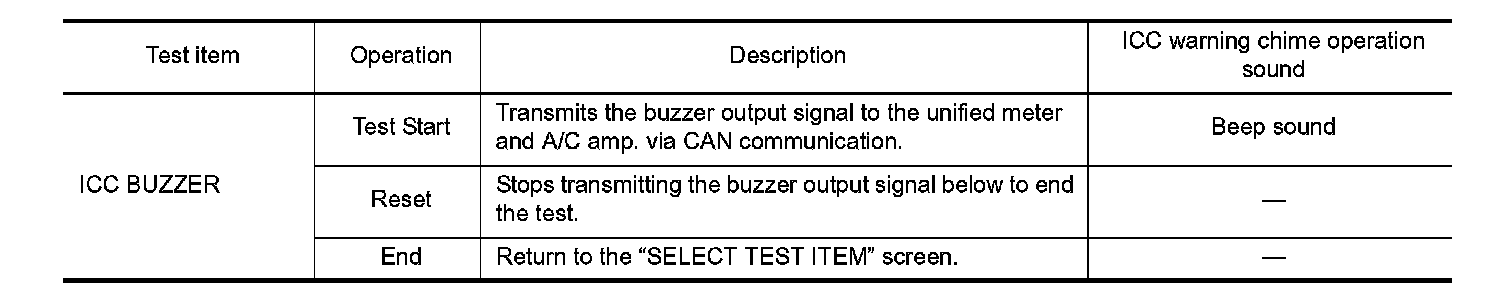

ICC BUZZER
