Component Inspection

PARK/NEUTRAL POSITION SWITCH CIRCUIT


Component Inspection

1.CHECK PARK/NEUTRAL POSITION SWITCH

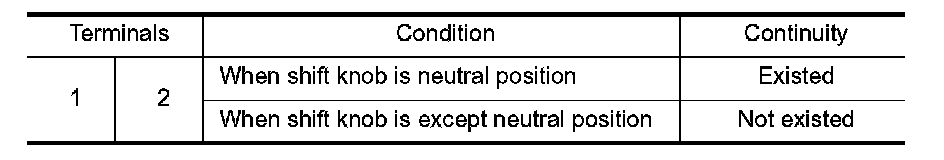

Check for continuity between the park/neutral position switch terminals.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace park/neutral position switch.
