Component Inspection (ICC Clutch Switch)

ICC BRAKE SWITCH


Component Inspection (ICC Clutch Switch)

1.CHECK ICC CLUTCH SWITCH-I
1. Turn ignition switch OFF.
2. Disconnect ICC clutch switch harness connector.

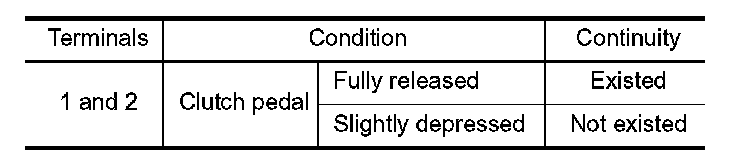

3. Check the continuity between ICC clutch switch terminals under the following conditions.





Is the inspection result normal?
YES - INSPECTION END
NO - GO TO 2.
2.CHECK ICC CLUTCH SWITCH-II
1. Adjust ICC clutch switch installation. Adjustments.

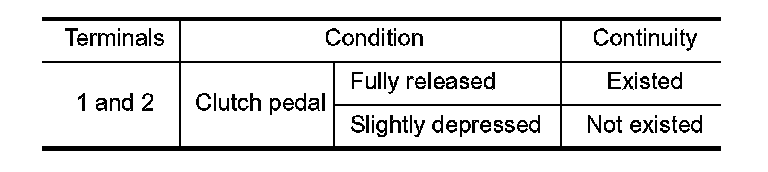

2. Check the continuity between ICC clutch switch terminals under the following conditions.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace ICC clutch switch.
