Component Inspection (ICC Brake Switch)

ICC BRAKE SWITCH


Component Inspection (ICC Brake Switch)

1.CHECK ICC BRAKE SWITCH-I
1. Turn ignition switch OFF.
2. Disconnect ICC brake switch harness connector.

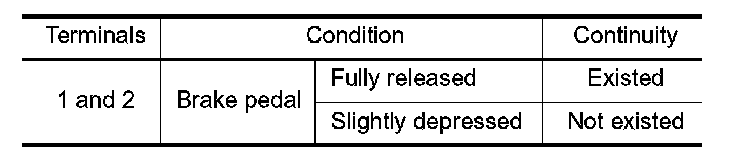

3. Check the continuity between ICC brake switch terminals under the following conditions.





Is the inspection result normal?
YES - INSPECTION END
NO - GO TO 2.
2.CHECK ICC BRAKE SWITCH-II
1. Adjust ICC brake switch installation. Inspection and Adjustment.

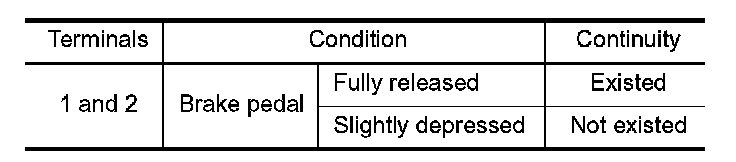

2. Check the continuity between ICC brake switch terminals under the following conditions.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace ICC brake switch.
