Component Inspection (ASCD Clutch Switch)

1.CHECK ASCD CLUTCH SWITCH-I
1. Turn ignition switch OFF.
2. Disconnect ASCD clutch switch harness connector.

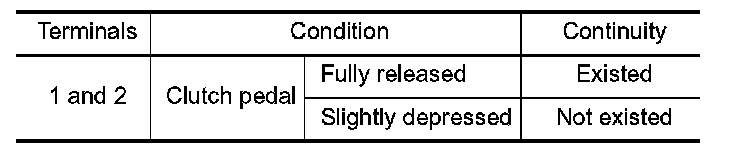

3. Check the continuity between ASCD clutch switch terminals under the following conditions.





Is the inspection result normal?
YES - INSPECTION END
NO - GO TO 2.
2.CHECK ASCD CLUTCH SWITCH-II
1. Adjust ASCD clutch switch installation. Adjustments.

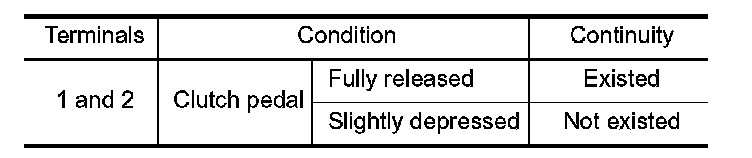

2. Check the continuity between ASCD clutch switch terminals under the following conditions.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace ASCD clutch switch.
