System Description

ICC


System Description


DESCRIPTION
The Intelligent Cruise Control (ICC) system automatically maintains a selected distance from the vehicle traveling in front of own vehicle according to that vehicle's speed (up to the set speed), or at the set speed when the road ahead is clear.
The ICC system can be set to one of two cruise control modes:

CAUTION:
Never set the cruise speed exceeding the posted speed limit.

Vehicle-to-vehicle Distance Control Mode
For maintaining a selected distance between own vehicle and the vehicle in front of own vehicle up to the preset speed. System Description.

Conventional (Fixed Speed) Cruise Control Mode
For cruising at a preset speed. System Description.

NOTE:
In the Conventional (Fixed Speed) Cruise Control Mode, a warning chime will not sound to warn driver if own vehicle are too close to the vehicle ahead.

WARNING:
Always drive carefully and attentively when using either cruise control mode. To avoid serious injury or death, do not rely on the system to prevent accidents or to control the vehicle's speed in emergency situations. Do not use cruise control except in appropriate rode and traffic conditions.

Brake Assist (With Preview Function)
Brake Assist (With Preview Function) share the systems and components with ICC system. System Description.

ICC SENSOR INTEGRATED UNIT INPUT/OUTPUT SIGNAL ITEM

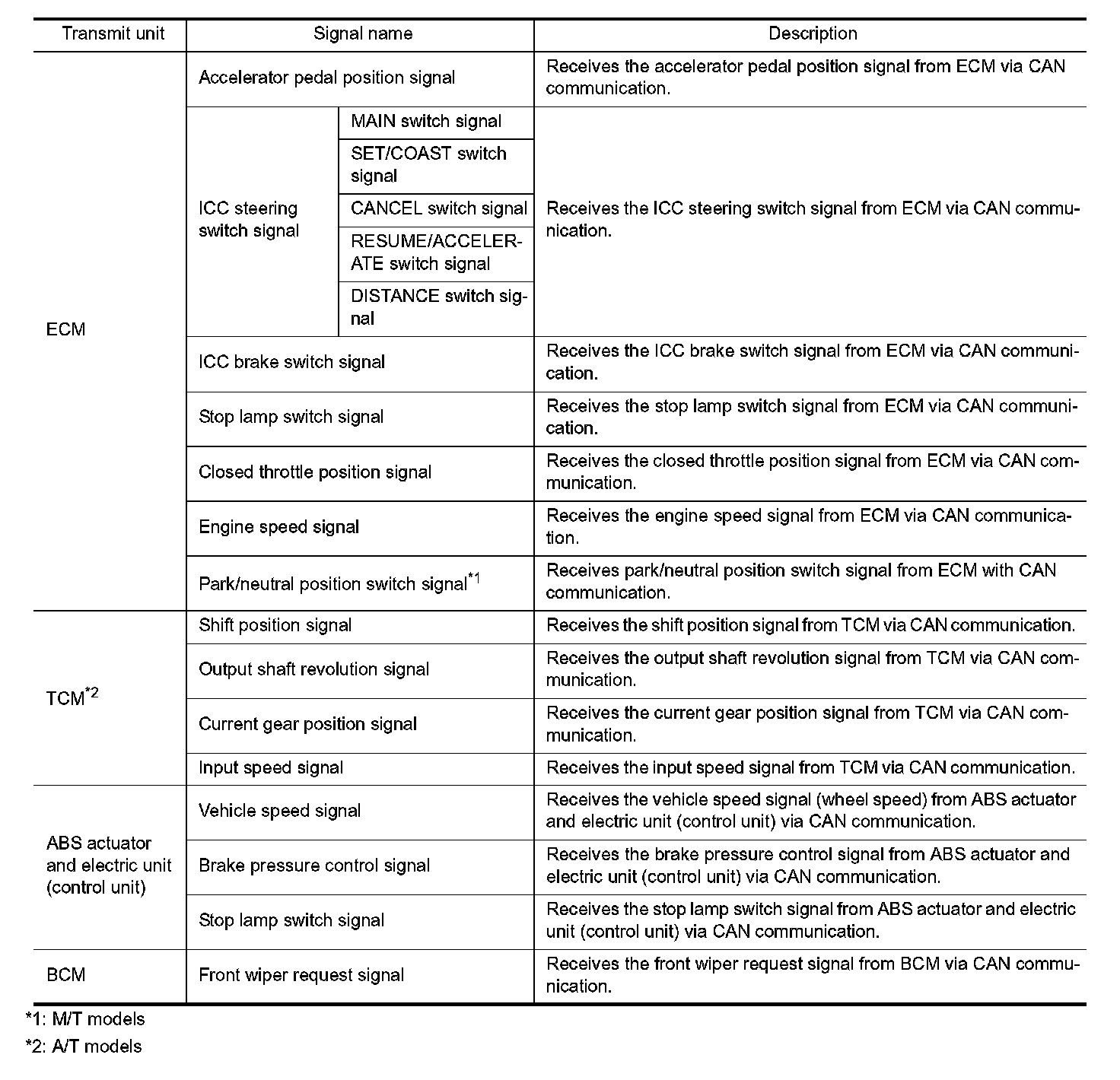

Input Signal Item

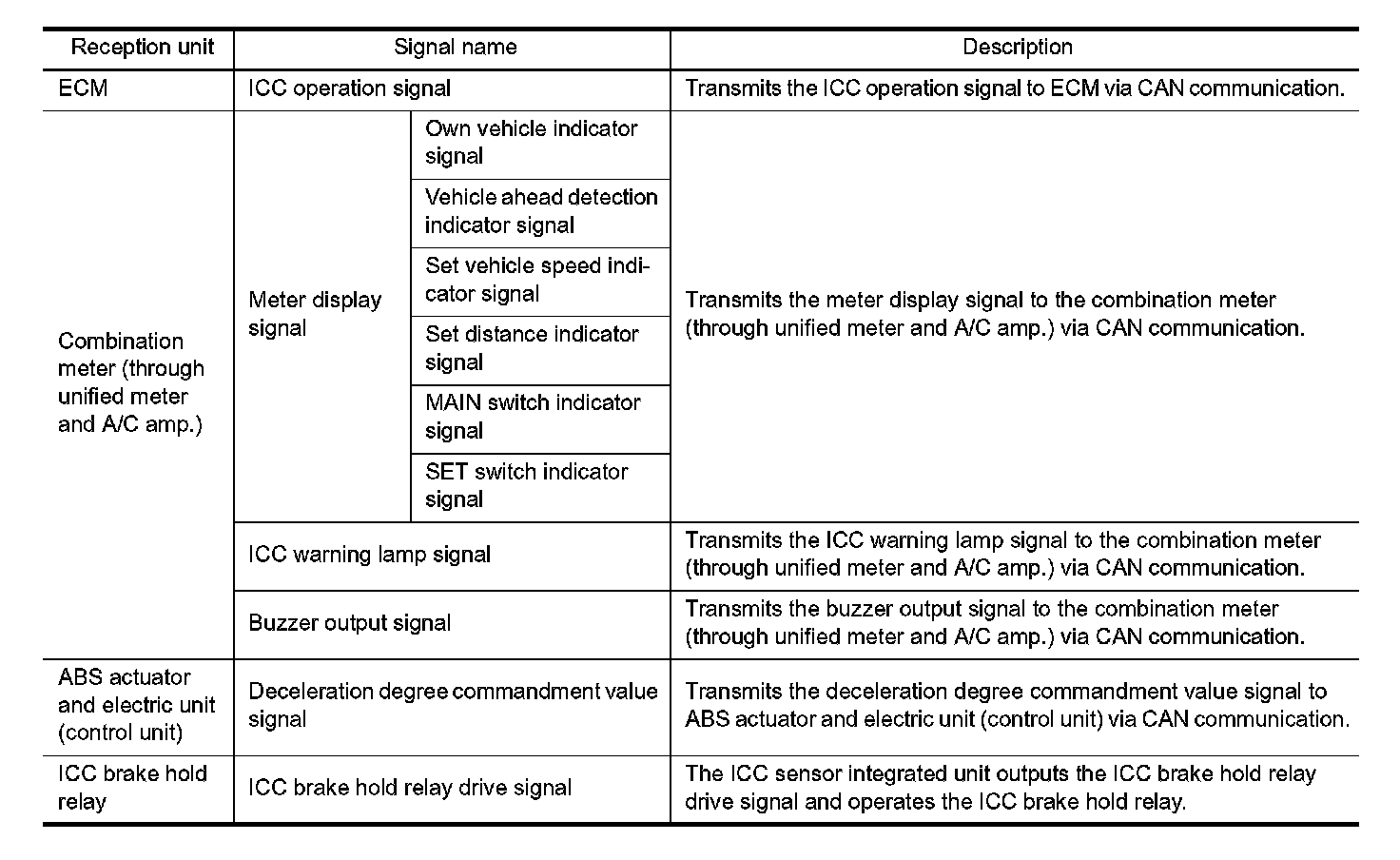

Output Signal Item
