PARKING BRAKE SHOE


Inspection and Adjustment


INSPECTION AFTER REMOVAL

Lining Thickness Inspection

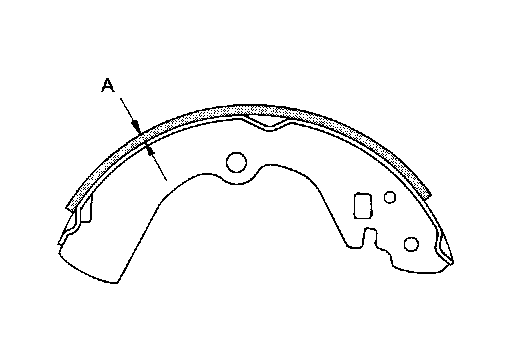

- Check thickness (A) of lining.

A : Refer to PB-12, "Parking Drum Brake". Parking Drum Brake

Drum Inner Diameter Inspection





- Check inner diameter (B) of drum.

B : Refer to PB-12, "Parking Drum Brake". Parking Drum Brake

Other Inspections
Check the following items, and replace the parts if necessary.
- Lining for excessive wear, damage, and peeling.
- Brake shoe sliding surface for excessive wear and damage.
- Anti-rattle pin and retainer for excessive wear, damage and rust.
- Adjuster spring, return spring and anti-rattle spring for settling, excessive wear, damage, and rust.
- Adjuster for smoothness.
- Toggle lever for excessive wear, damage and rust.
- Visually check inside of the drum for excessive wear, cracks, and damage with a pair of vernier calipers.

ADJUSTMENT AFTER INSTALLATION
1. Adjust the parking brake pedal (pedal type), or parking brake lever (lever type) stroke. Pedal Type (pedal type), Lever Type (lever type).
2. Check a drag of the parking brake.

CAUTION:
If any drag is found, inspect the rear disc brake.
- 1 piston type: Inspection.
- 2 piston type: Inspection.
3. Adjust the parking brake shoe. Adjustments.
