ABS WARNING LAMP

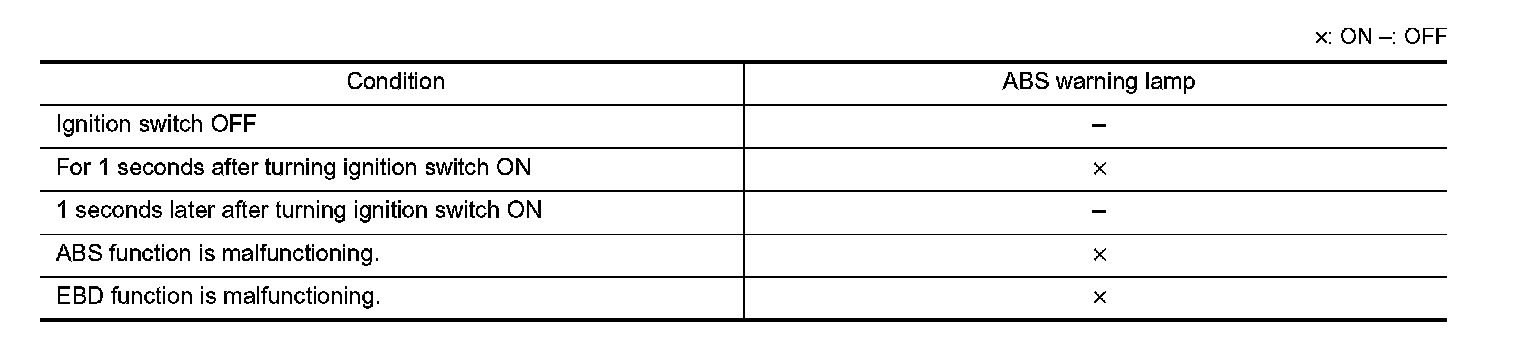

Description










ABS WARNING LAMP


Diagnosis Procedure

1.PERFORM SELF-DIAGNOSIS
Perform self-diagnosis for "ABS" with CONSULT-III.
Is any DTC detected?
YES - Check the DTC.
NO - GO TO 2.
2.CHECK COMBINATION METER
Check if the indication and operation of combination meter are normal. CONSULT-III Function.
Is the inspection result normal?
YES - Replace ABS actuator and electric unit (control unit). Exploded View.
NO - Repair or replace error-detected parts.
