Diagnosis Procedure

PARKING BRAKE SWITCH


Description

Operate the parking brake lever (M/T) or parking brake pedal (A/T), and brake warning lamp in the combination meter turns ON/OFF correctly.




PARKING BRAKE SWITCH


Diagnosis Procedure

1.CHECK PARKING BRAKE SWITCH CIRCUIT
1. Turn the ignition switch OFF.
2. Disconnect parking brake switch harness connector.
3. Disconnect combination meter harness connector.

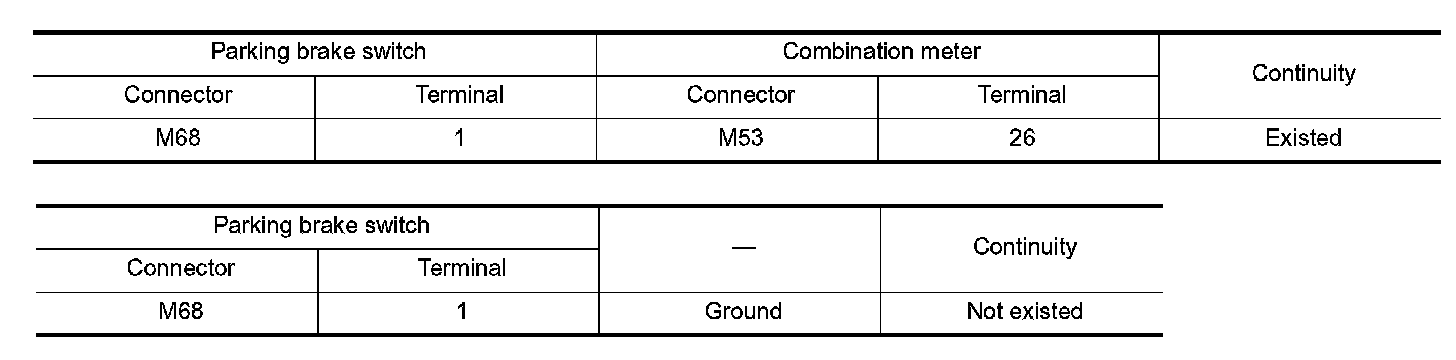

4. Check the continuity between parking brake switch harness connector and combination meter harness connector.





Is the inspection result normal?
YES - GO TO 2.
NO - Repair or replace error-detected parts.
2.CHECK PARKING BRAKE SWITCH
Check the continuity between parking brake switch. Component Inspection.
Is the inspection result normal?
YES - GO TO 3.
NO - Replace parking brake switch. Exploded View (pedal type), Exploded View (lever type).
3.CHECK CONNECTOR
Check the connector and terminal for deformation, disconnection, looseness, etc.
Is the inspection result normal?
YES - GO TO 4.
NO - Repair or replace error-detected parts.
4.CHECK PARKING BRAKE SWITCH SIGNAL

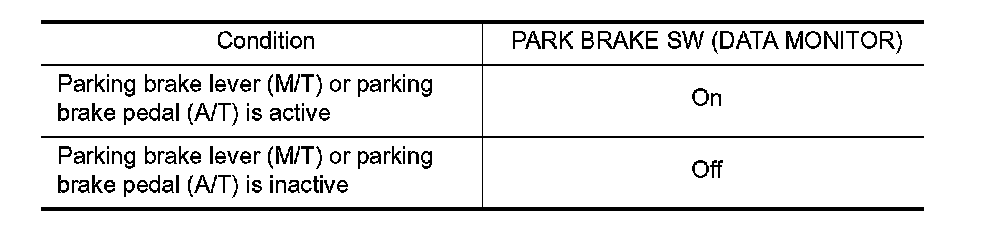

Select "ABS", "DATA MONITOR" and "PARK BRAKE SW" in order with CONSULT-III, and perform the parking brake switch inspection.





Is the inspection result normal?
YES - INSPECTION END
NO - Check combination meter. CONSULT-III Function.
