Component Inspection

PARKING BRAKE SWITCH


Component Inspection

1.CHECK PARKING BRAKE SWITCH
1. Turn the ignition switch OFF.
2. Disconnect parking brake switch harness connector.

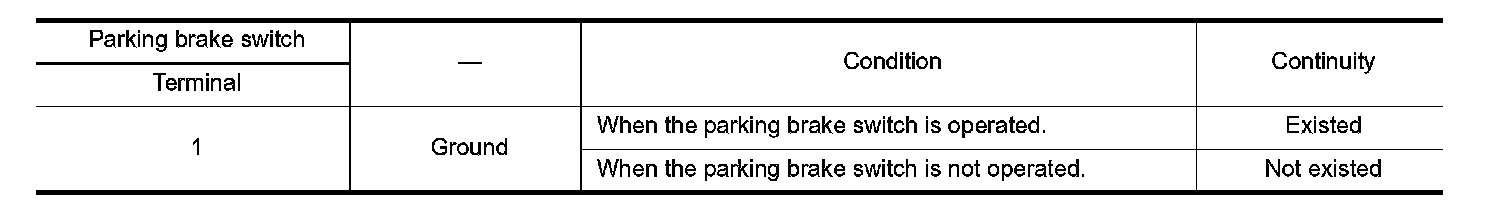

3. Check the continuity between parking brake switch harness connector.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace parking brake switch. Exploded View (pedal type), Exploded View (lever type).
