Component Function Check

FORWARD SWITCH


DRIVER SIDE : Component Function Check

1.CHECK FUNCTION
1. Turn ignition switch ON.
2. Select "FORWARD SW" in the "Data Monitor" mode using CONSULT-III.

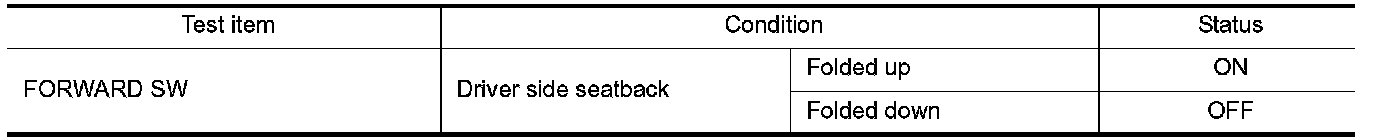

3. Check the forward switch signal under the following condition.





Is the indication normal?
YES - Forward switch function is OK.
NO - Diagnosis Procedure.
