Removal and Installation

SIDE SUPPORT SWITCH


Removal and Installation


REMOVAL

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.

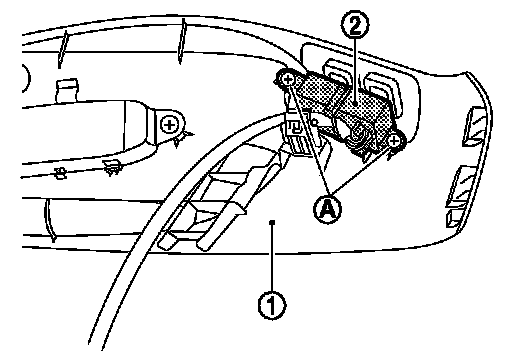

1. Remove seat cushion outer finisher (1). Removal and Installation.





2. Remove screws (A).
3. Remove side support switch (2) from seat cushion outer finisher.

INSTALLATION
Install in the reverse order of removal.

CAUTION:
Always clamp the harness to the right place.
