Component Function Check

MIRROR SENSOR


PASSENGER SIDE : Component Function Check

1.CHECK FUNCTION
1. Turn ignition switch ON.
2. Select "MIR/SEN RH U-D", "MIR/SEN RH R-L" in the "Data monitor" using CONSULT-III.

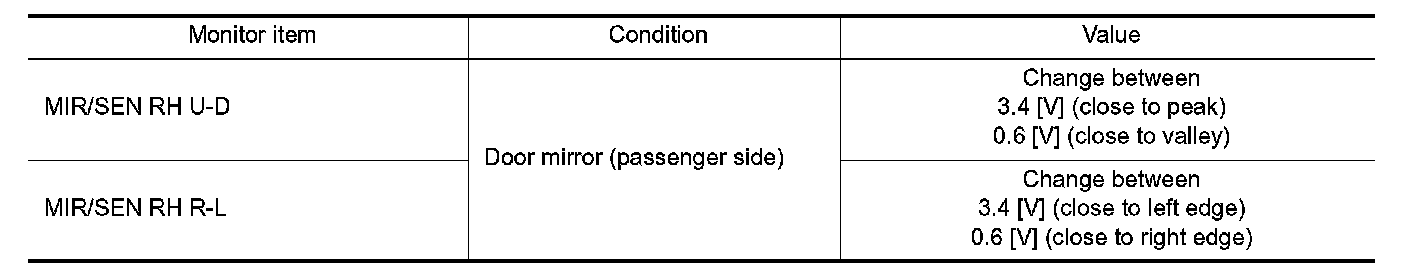

3. Check the mirror sensor (passenger side) signal under the following conditions.





Is the indication normal?
YES - INSPECTION END
NO - Perform diagnosis procedure. Diagnosis Procedure.
