Passenger Seat Control Unit





PASSENGER SEAT CONTROL UNIT


Reference Value

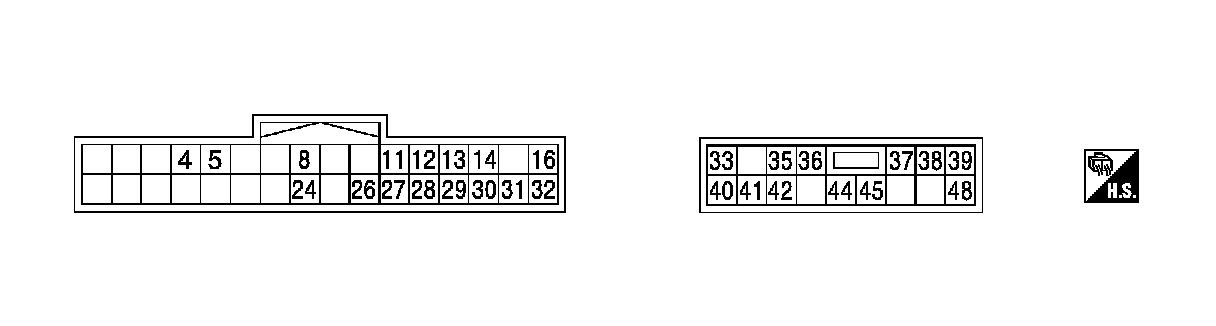

TERMINAL LAYOUT

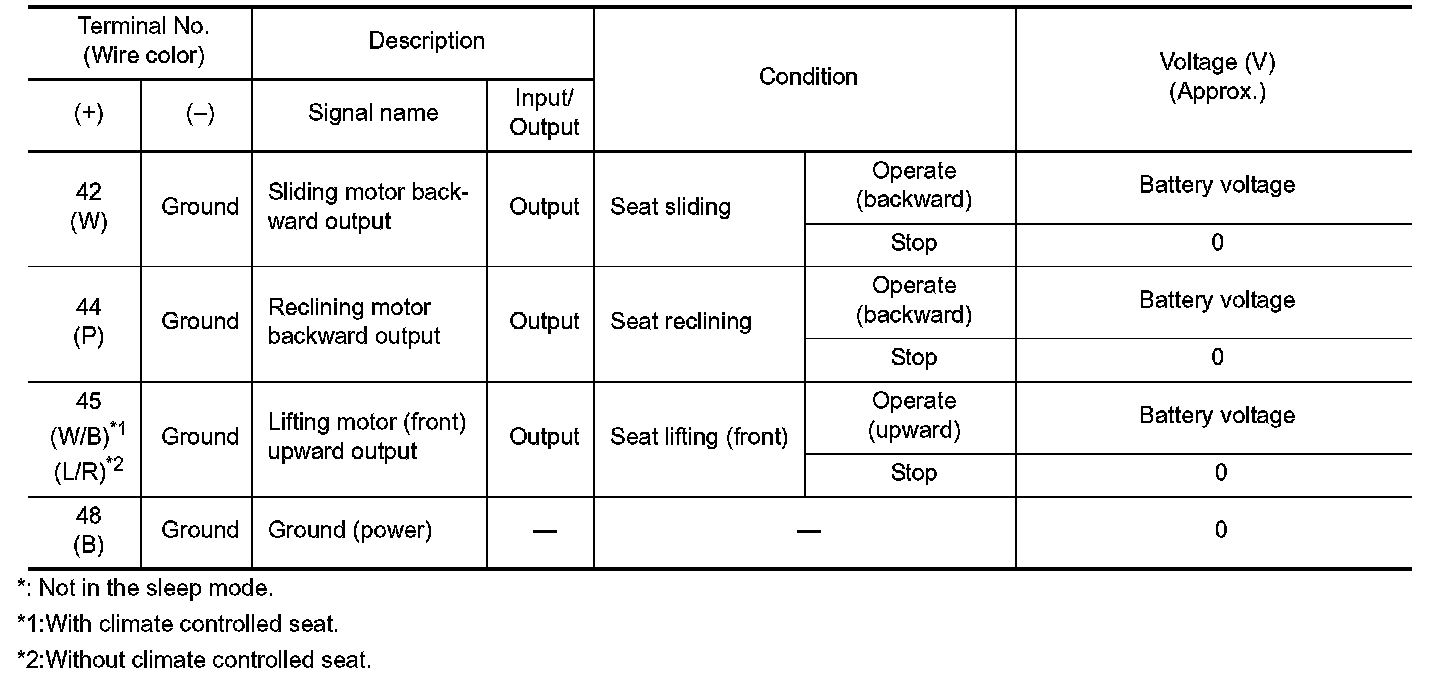

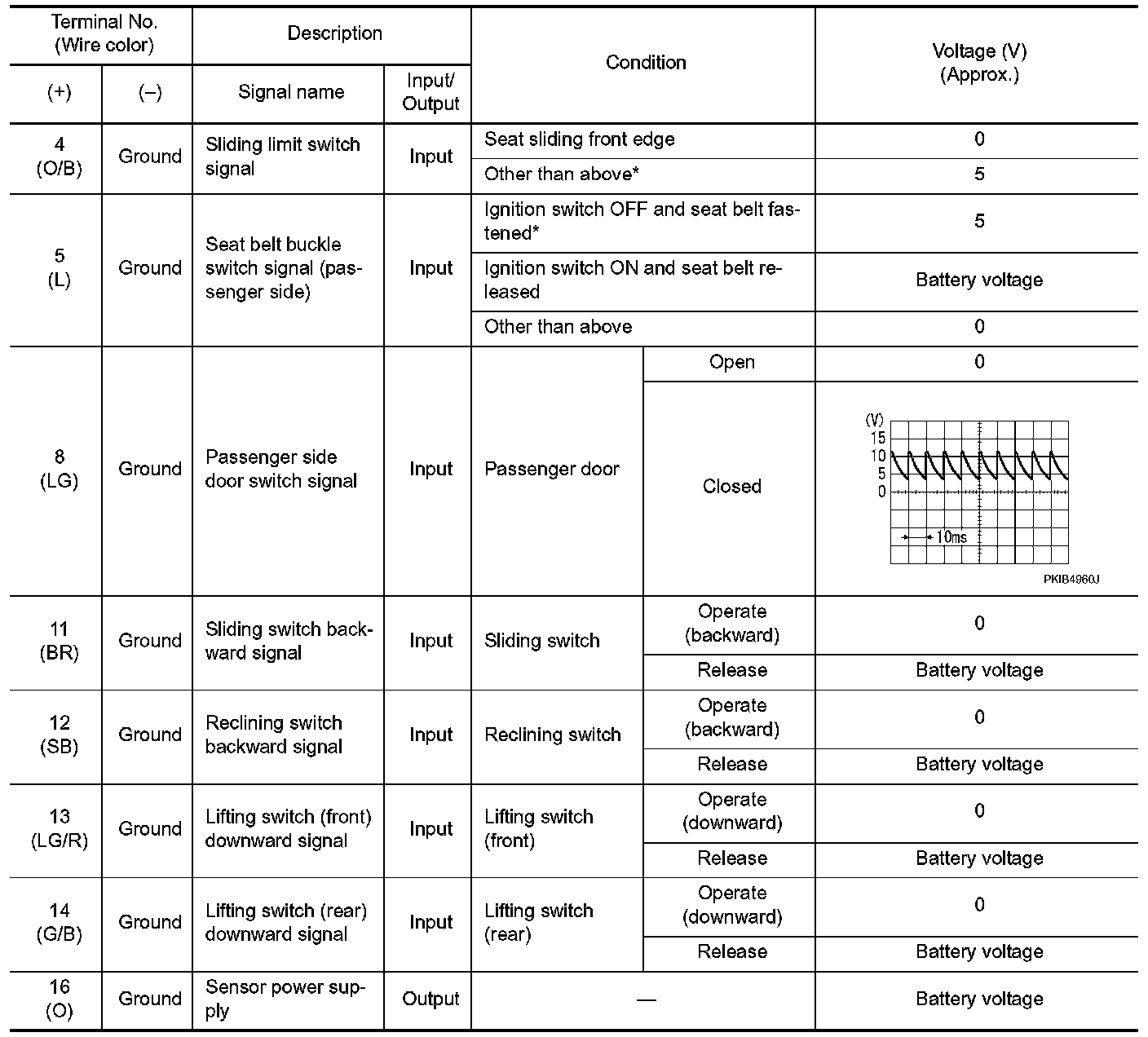

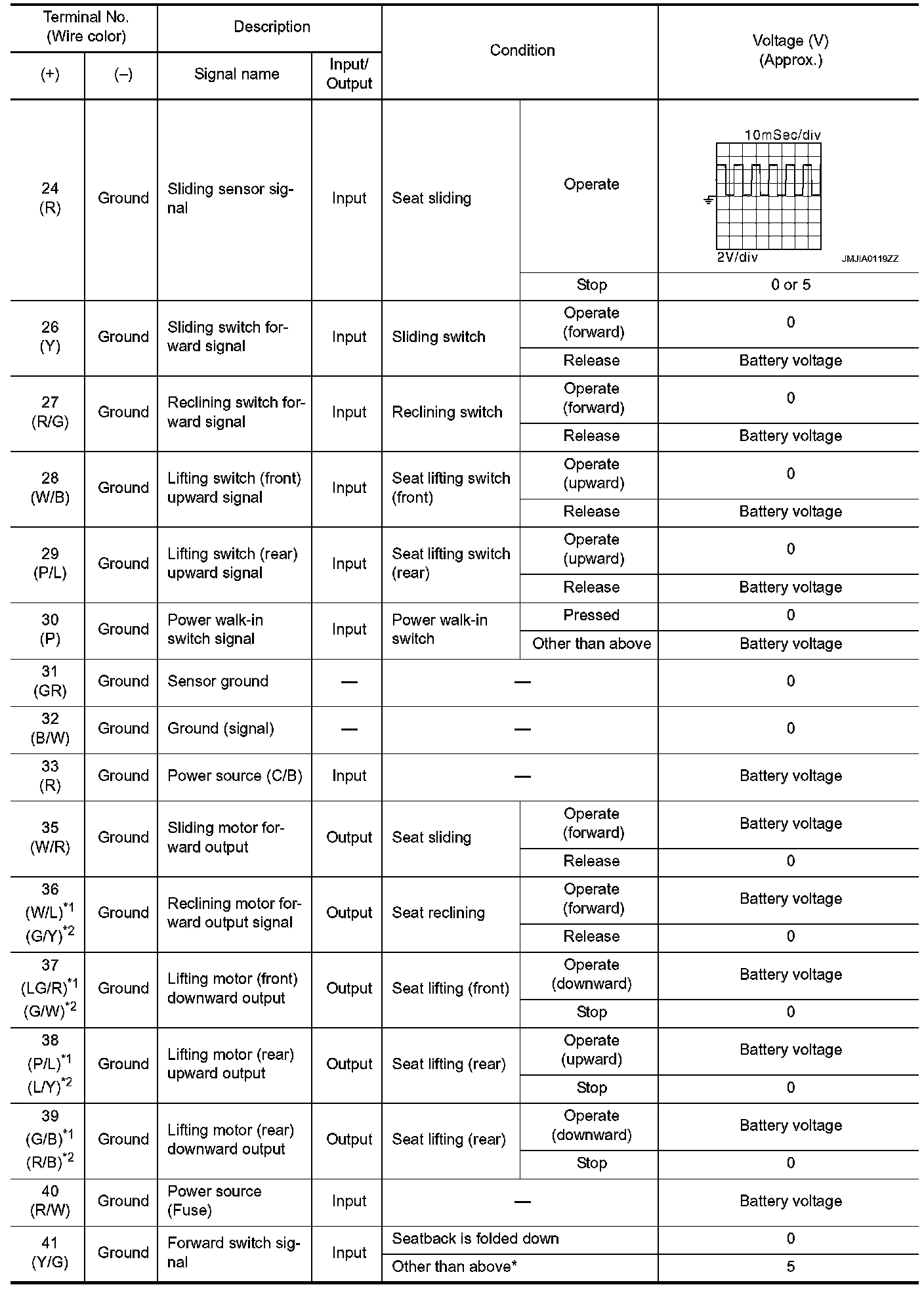

PHYSICAL VALUES
