Component Inspection

SLIDING SWITCH


SEATBACK : Component Inspection

1.CHECK SLIDING SWITCH
1. Turn ignition switch OFF.
2. Disconnect sliding switch (seatback) connector.

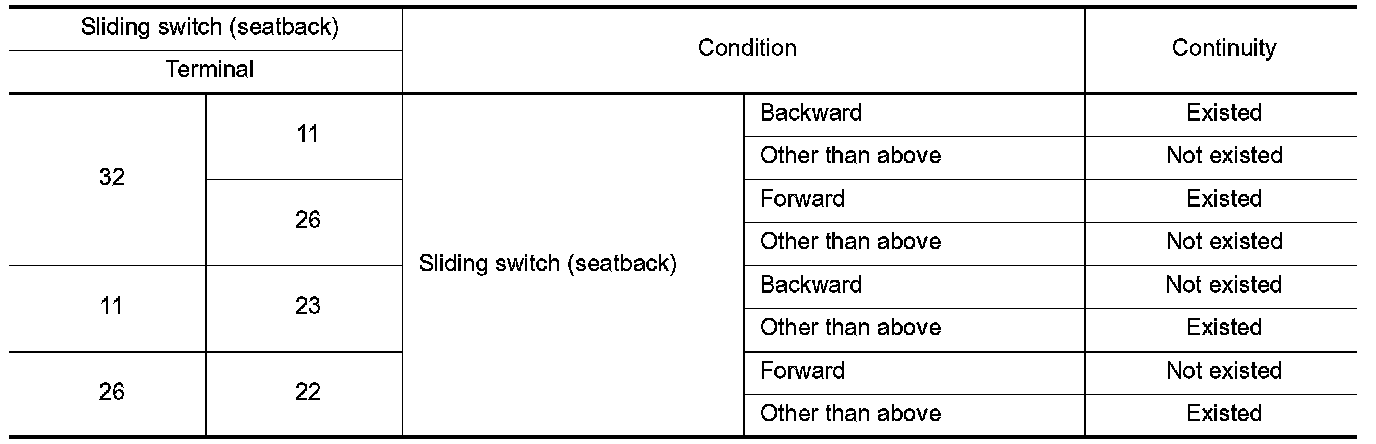

3. Check continuity between sliding switch (seatback) terminals.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace sliding switch (seatback). Exploded View.
