Component Function Check

SLIDING MOTOR


DRIVER SIDE : Component Function Check

1.CHECK FUNCTION
1. Turn ignition switch ON.

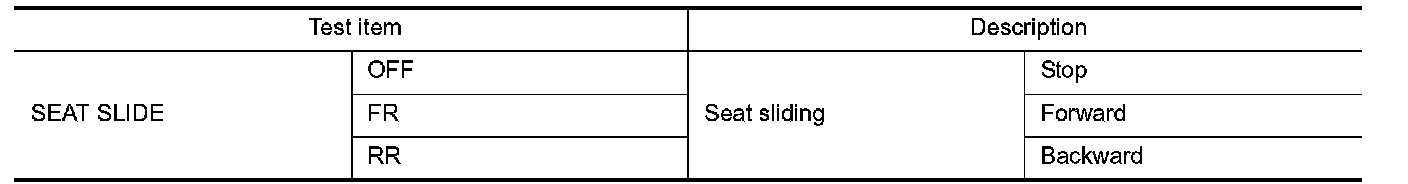

2. Select "SEAT SLIDE" in the "Active Test" mode using CONSULT-III.
3. Check sliding motor operation.





Is the operation of relevant parts normal?
YES - Sliding motor function is OK.
NO - Diagnosis Procedure.
