Component Inspection

SLIDING LIMIT SWITCH


DRIVER SIDE : Component Inspection

1.CHECK SLIDING LIMIT SWITCH
1. Turn ignition switch OFF.
2. Disconnect sliding limit switch connector.

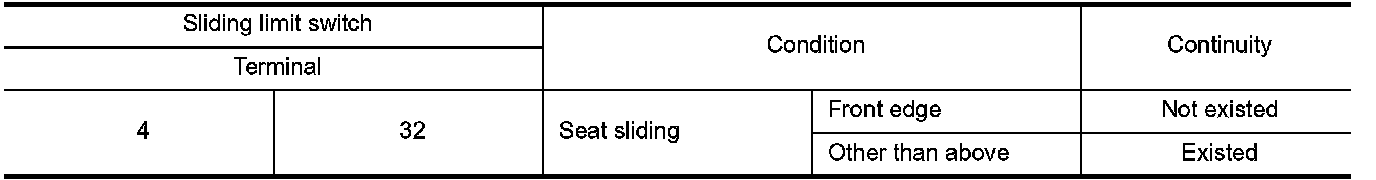

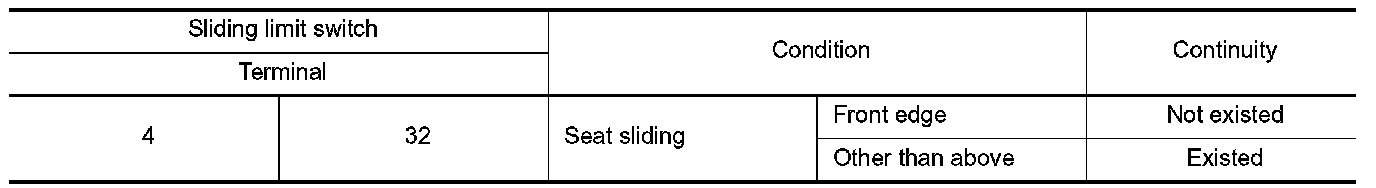

3. Check continuity between sliding limit switch terminals.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace sliding limit switch. Exploded View.
