Component Function Check

SLIDING LIMIT SWITCH


DRIVER SIDE : Component Function Check

1.CHECK FUNCTION
1. Turn ignition switch ON.
2. Select "FWD LIMIT SW" in the "Data Monitor" mode using CONSULT-III.

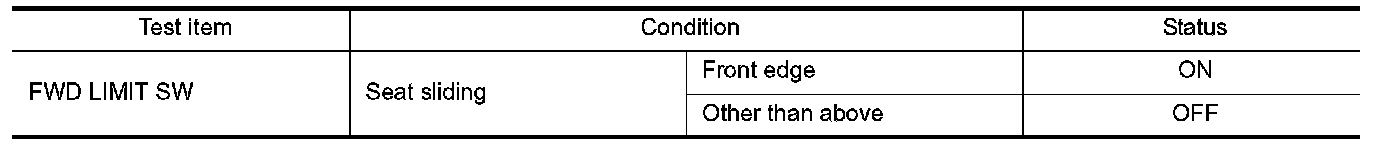

3. Check the sliding limit switch signal under the following condition.





Is the indication normal?
YES - Sliding limit switch function is OK.
NO - Diagnosis Procedure.
