Diagnosis Procedure

SEATBACK HEATER


DRIVER SIDE : Description

Warms the seat cushion.




SEATBACK HEATER


DRIVER SIDE : Diagnosis Procedure

1.CHECK SEATBACK HEATER
1. Turn ignition switch OFF.
2. Disconnect seatback heater connector.

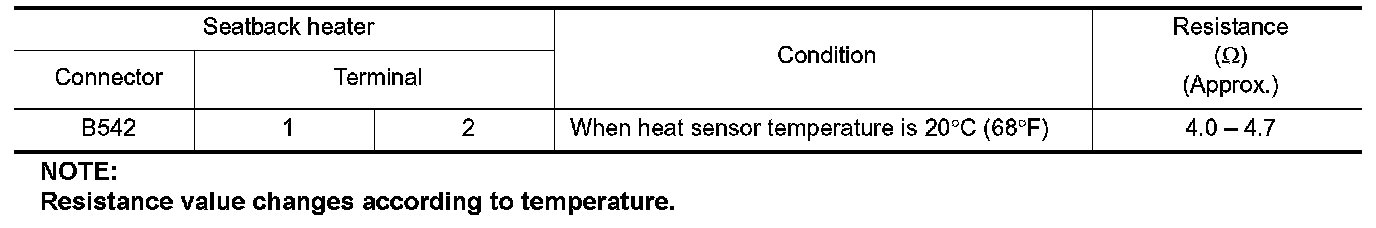

3. Check resistance between seatback heater terminals.





Is the inspection result normal?
YES - Replace seat cushion heater. Exploded View.
NO - Replace seatback heater. Exploded View.
