Component Inspection

SEAT CUSHION HEATER


PASSENGER SIDE : Component Inspection

1.CHECK SEAT CUSHION HEATER
1. Turn ignition switch OFF.
2. Disconnect seat cushion heater connector and seatback heater connector.

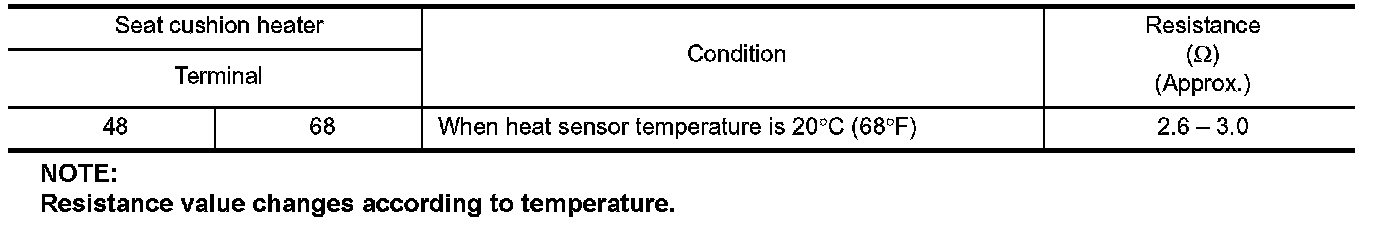

3. Check resistance between seat cushion heater terminals.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace seat cushion heater. Exploded View.
