Component Function Check

SEAT BELT BUCKLE SWITCH


DRIVER SIDE : Component Function Check

1.CHECK FUNCTION
1. Turn ignition switch ON.
2. Select "SEAT BELT SW" in the "Data Monitor" mode using CONSULT-III.

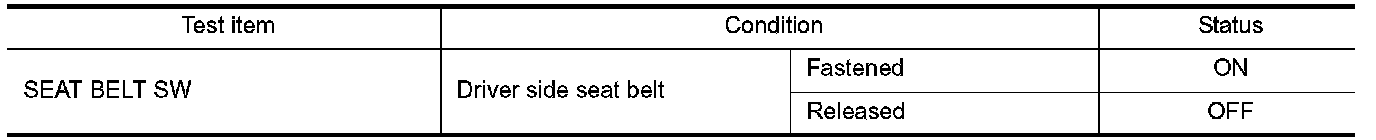

3. Check the forward switch signal under the following condition.





Is the indication normal?
YES - Seat belt buckle switch (driver side) function is OK.
NO - Diagnosis Procedure.
