Diagnosis Procedure

RECLINING SWITCH


DRIVER SIDE : Description

- Reclining switch is equipped to the power seat switch on the seat cushion side surface.
- The operation signal is input to the driver seat control unit when the reclining switch is operated.




RECLINING SWITCH


DRIVER SIDE : Diagnosis Procedure

1.CHECK RECLINING SWITCH SIGNAL
1. Turn ignition switch OFF.
2. Disconnect power seat switch connector.

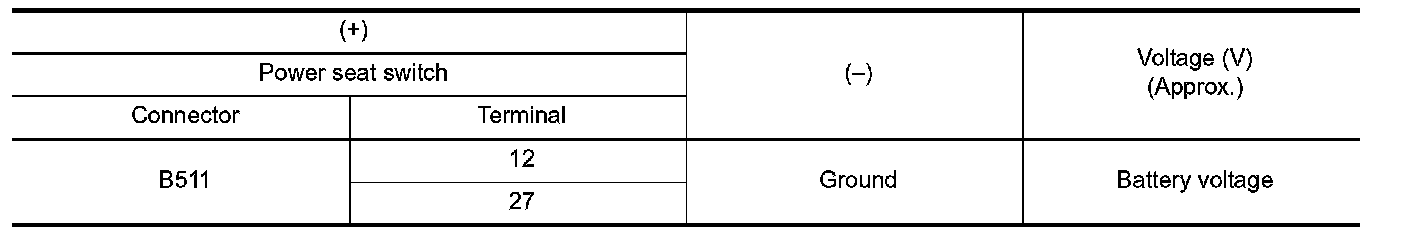

3. Check voltage between power seat switch harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - GO TO 2.
2.CHECK RECLINING SWITCH CIRCUIT
1. Disconnect driver seat control unit connector.

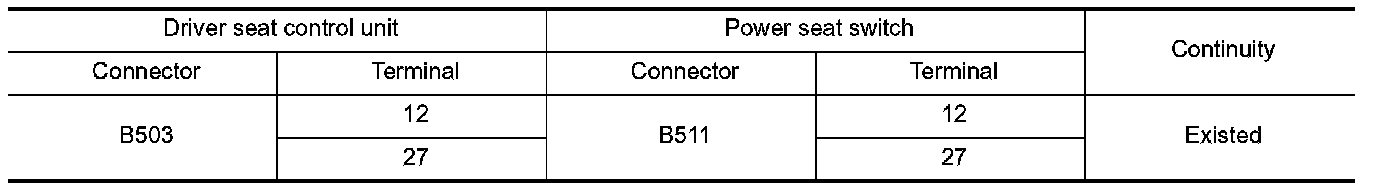

2. Check continuity between driver seat control unit harness connector and power seat switch harness connector.

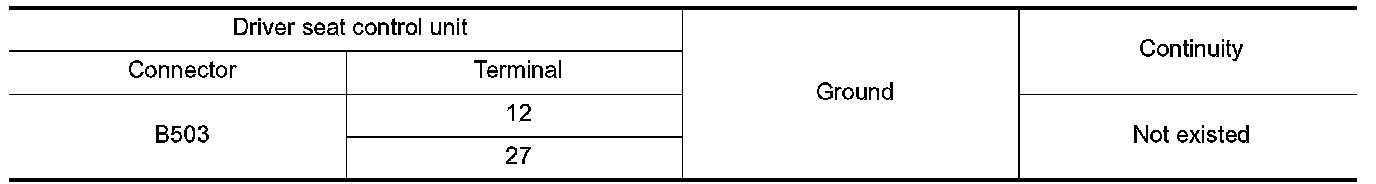

3. Check continuity between driver seat control unit harness connector and ground.





Is the inspection result normal?
YES - Replace driver seat control unit. Removal and Installation.
NO - Repair or replace harness.
3.CHECK RECLINING SWITCH
Check reclining switch. Component Inspection.
Is the inspection result normal?
YES - GO TO 4.
NO - Replace power seat switch. Switch Assembly.
4.CHECK INTERMITTENT INCIDENT
Check intermittent incident. Intermittent Incident.
- INSPECTION END
