Component Function Check

RECLINING SWITCH


DRIVER SIDE : Component Function Check

1.CHECK FUNCTION
1. Turn ignition switch ON.
2. Select "RECLN SW-FR", "RECLN SW-RR" in the "Data monitor" mode using CONSULT-III.

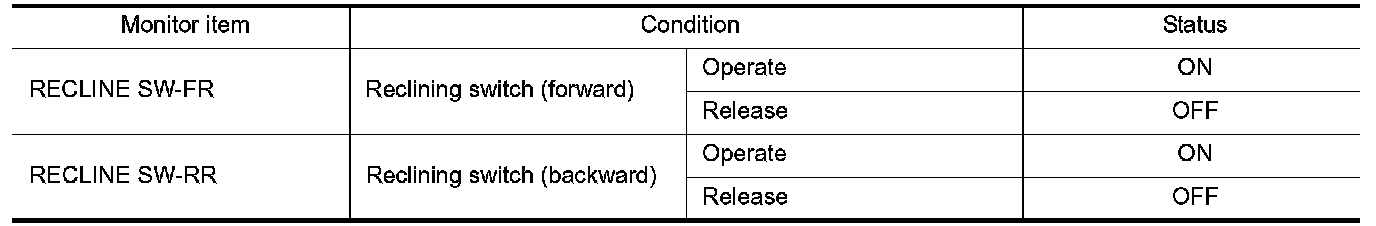

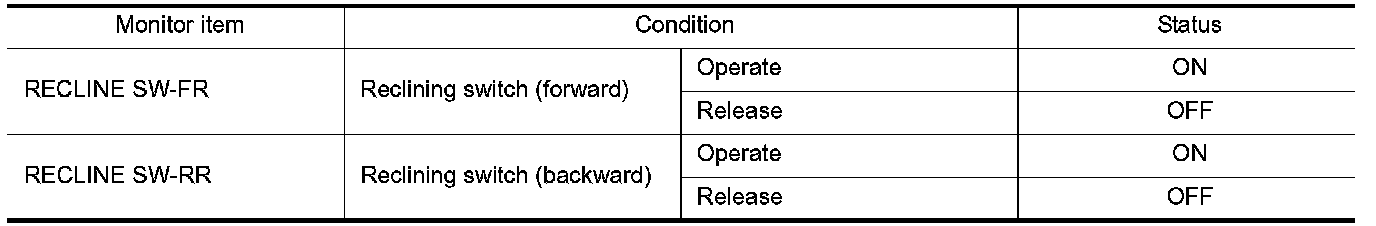

3. Check reclining switch signal under the following conditions.





Is the indication normal?
YES - Reclining switch function is OK.
NO - Diagnosis Procedure.
