Driver Side

POWER SEAT SWITCH GROUND CIRCUIT


DRIVER SIDE : Diagnosis Procedure

1.CHECK POWER SEAT SWITCH GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power seat switch connector.

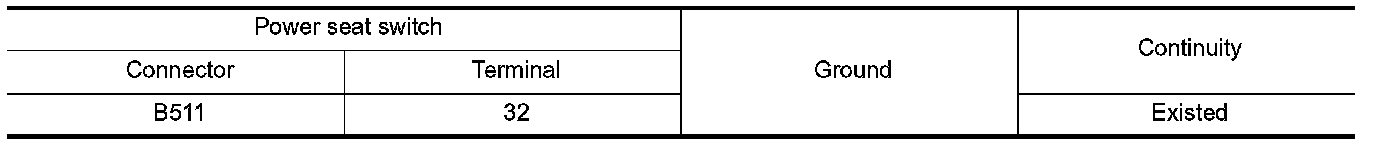

3. Check continuity between power seat switch connector and ground.





Is the inspection result normal?
YES - GO TO 2.
NO - Repair or replace harness.
2.CHECK POWER SEAT SWITCH INTERNAL CIRCUIT
Check lifting switch (rear). Component Inspection.
Is the inspection result normal?
YES - GO TO 3.
NO - Replace power seat switch. Switch Assembly.
3.CHECK INTERMITTENT INCIDENT
Check intermittent incident. Intermittent Incident.
- INSPECTION END
