Component Inspection

LIFTING SWITCH (FRONT)


DRIVER SIDE : Component Inspection

1.CHECK LIFTING SWITCH (FRONT)
1. Turn ignition switch OFF.
2. Disconnect power seat switch connector.

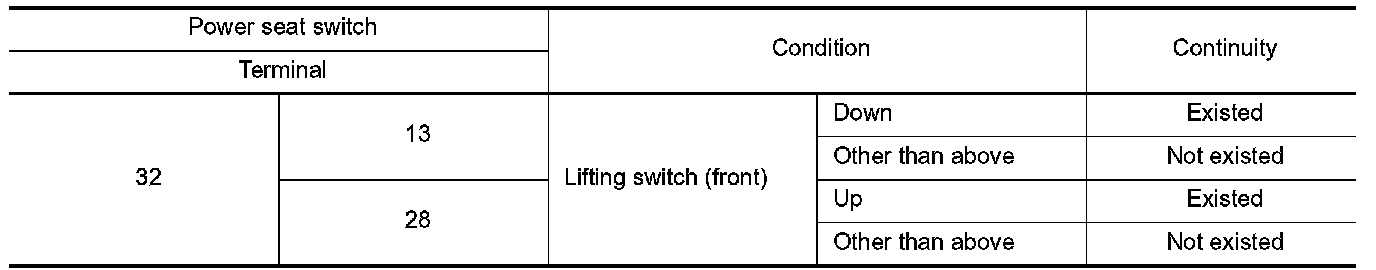

3. Check continuity between power seat switch terminals.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace power seat switch. Switch Assembly.
