Component Function Check

LIFTING SWITCH (FRONT)


DRIVER SIDE : Component Function Check

1.CHECK FUNCTION
1. Turn ignition switch ON.
2. Select "LIFT FR SW-UP", "LIFT FR SW-DN" in the "Data monitor" mode using CONSULT-III.

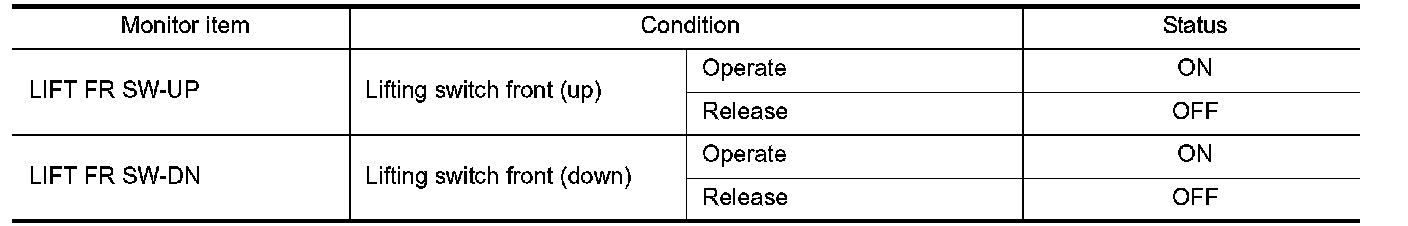

3. Check lifting switch (front) signal under the following conditions.





Is the indication normal?
YES - Lifting switch (front) function is OK.
NO - Diagnosis Procedure.
