Component Inspection

CLIMATE CONTROLLED SEAT SWITCH


Component Inspection

1.CHECK CLIMATE CONTROLLED SEAT SWITCH
1. Turn ignition OFF.
2. Disconnect climate controlled seat switch connector.

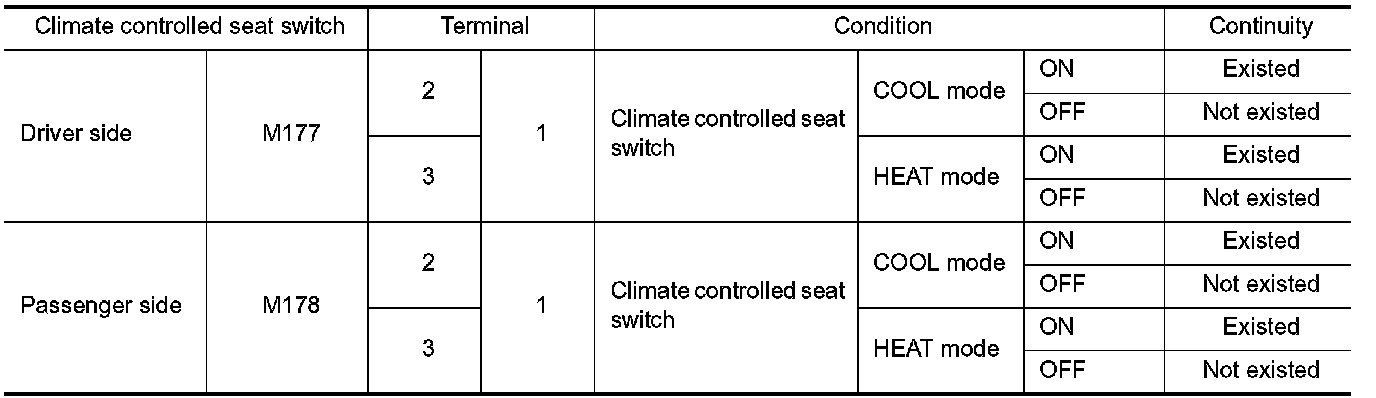

3. Check climate controlled seat switch terminals.





Is the inspection result normal?
YES - Climate controlled seat switch is OK.
NO - Replace climate controlled seat switch. Removal and Installation.
