Removal and Installation

FRONT SEAT


Removal and Installation


REMOVAL

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.
1. Remove the front slide cover.

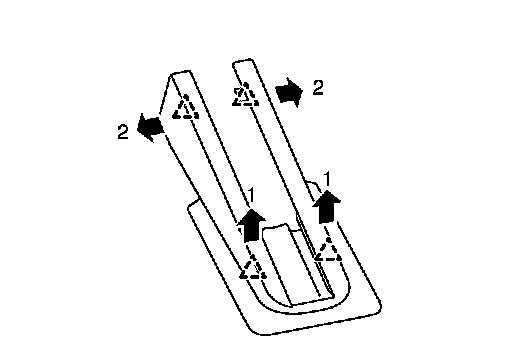

a. Front outer slide cover
- Slide the seat to the rearmost position.
- Pull up the front edge of the front slide cover to release the pawls.
- Slide the front slide cover forward to release the pawls.

Triangle: Pawl

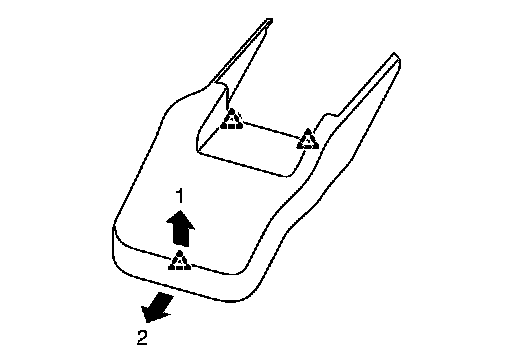

b. Front inner slide cover
- Slide the seat to the rearmost position.
- Pull up the front edge of the front slide cover to release the pawls.
- Slide the front slide cover forward to release the pawls.

Triangle: Pawl

2. Remove the mounting bolts on the front side of the front seat.
3. Remove the rear slide cover.

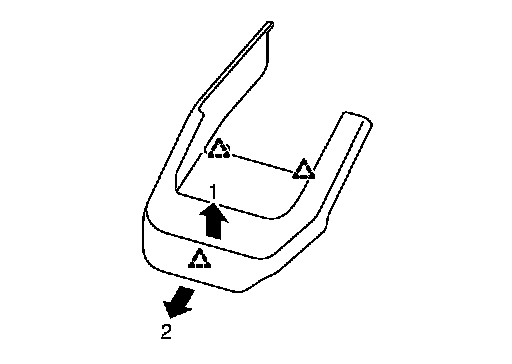

a. Rear outer slide cover
- Slide the seat to the foremost position.
- Pull up the rear edge of the rear outer slide cover to release the pawls.
- Open the front end of the rear outer slide cover to release the pawls.

Triangle: Pawl






b. Rear inner slide cover
- Slide the seat to the foremost position.
- Pull up the rear edge of the rear inner slide cover to release the pawls.
- Slide the rear inner slide cover rearward to release the pawls.

Triangle: Pawl

4. Remove the mounting bolts on the rear side of the front seat.
5. Set seatback in a standing position.
6. Disconnect harness connectors under the seat and remove harness securing clips.

CAUTION:
Before removal, turn ignition switch OFF, disconnect battery negative terminal and then wait for at least 3 minutes.
7. Remove seat from the vehicle.

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.

INSTALLATION
Install in the reverse order of removal.

CAUTION:
- Before installation, turn ignition switch OFF, disconnect battery negative terminal and then wait for at least 3 minutes.
- Clamp the harness in position.

NOTE:
After installing the front seat, perform additional service when removing battery negative terminal. (with automatic drive positioner models) Special Repair Requirement. (without automatic drive positioner models) Special Repair Requirement.
