Component Inspection

POWER WALK-IN SWITCH


Component Inspection

1.CHECK POWER WALK-IN SWITCH
1. Turn ignition switch OFF.
2. Disconnect power walk-in switch connector.

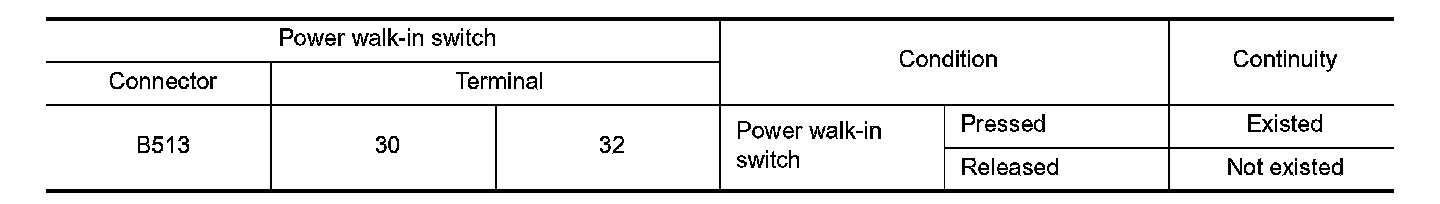

3. Check continuity between power walk-in switch terminals.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace power walk-in switch (Built in walk-in lever). Exploded View.
